Product Overview
The ZJWZJH (10Pcs) 12V Relay Din Rail; Silm Relay 12V DC/AC 6Amp 5Pin 1NO 1NC SPDT with LED Indicator is a Electromechanical Relays product by ZJWZJH. It features 【ul listed】 12 volt electromagnetic relay through ul and vde.
Key Features

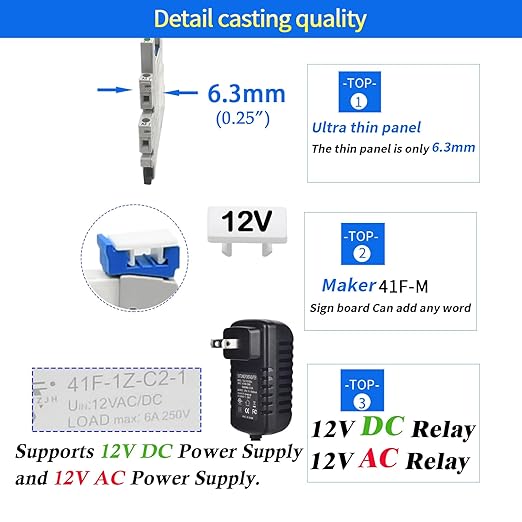

- 【UL Listed】 12 Volt Electromagnetic Relay through UL and VDE certification, Socket through UL / CSA and CE certification. The relay module thickness is only 0.24 "/6.2mm.

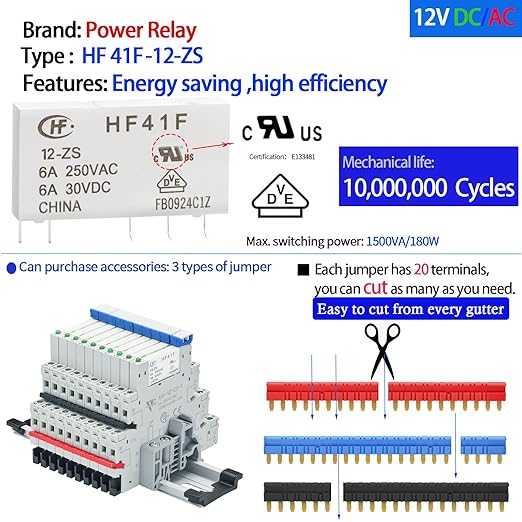

- 【5 pin relay 12v】12V Relay Coil Voltage: 12V DC and 12V AC , Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin; Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied. Mechanical life: 10,000,000 Cycles; Electrical life: 300,000 Cycles.

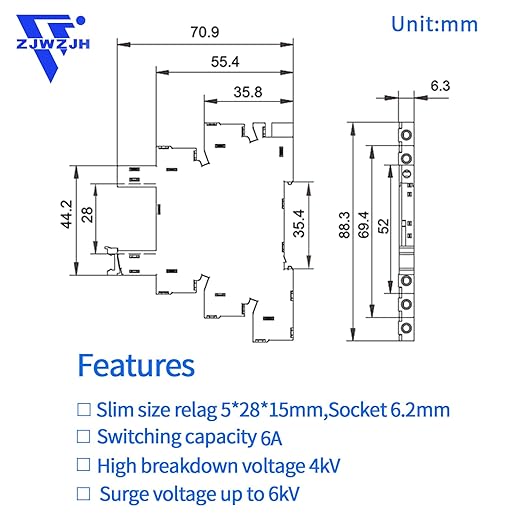

- 【Dimension】The socket is installed with screws, socket slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).

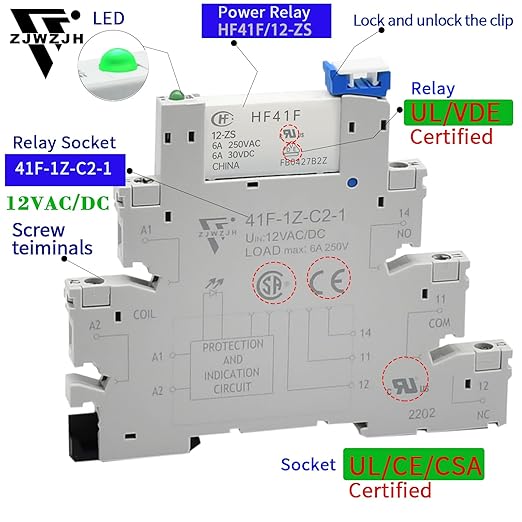

- 【Socket】Socket: Screw terminal, din rail mounting, with finger protection device.Relay Input voltage: 12V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

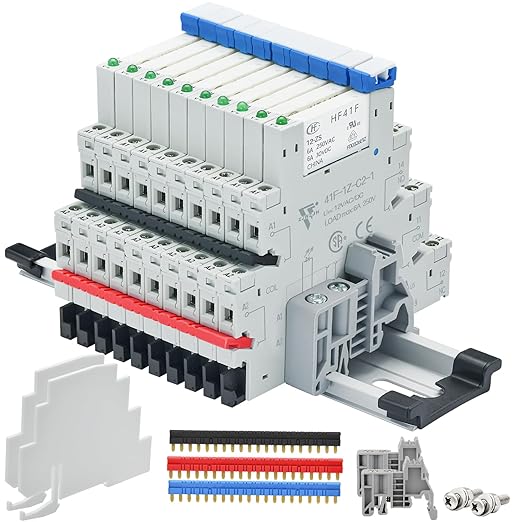

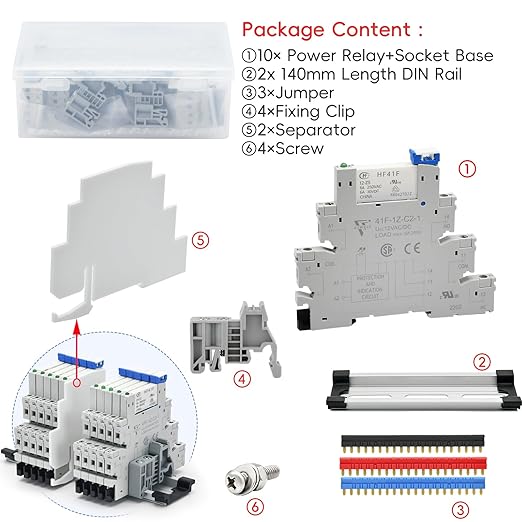

- 【Package】Package Content : 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail; 3×Jumper; 4×Fixing Clip; 2×Separator; 4×Screw. Ambient temperature: -40℃ ~ 70℃.
Why Choose the ZJWZJH (10Pcs) 12V Relay Din Rail; Silm Relay 12V DC/AC 6Amp 5Pin 1NO 1NC SPDT with LED Indicator
The ZJWZJH (10Pcs) 12V Relay Din Rail; Silm Relay 12V DC/AC 6Amp 5Pin 1NO 1NC SPDT with LED Indicator offers 【ul listed】 12 volt electromagnetic relay through ul and 【5 pin relay 12v】12v relay coil voltage: 12v. These features make the ZJWZJH (10Pcs) 12V Relay Din Rail; Silm Relay 12V DC/AC 6Amp 5Pin 1NO 1NC SPDT with LED Indicator a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH (10Pcs) 12V Relay Din Rail; Silm Relay 12V DC/AC 6Amp 5Pin 1NO 1NC SPDT with LED Indicator is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH (10Pcs) 12V Relay Din Rail; Silm Relay 12V DC/AC 6Amp 5Pin 1NO 1NC SPDT with LED Indicator is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver. Contact Type: Normally Open. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $82.48.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver |
| Contact Type | Normally Open |
| Current Rating | 6 Amps |
| Mounting Type | DIN Rail Mount |
