Product Overview

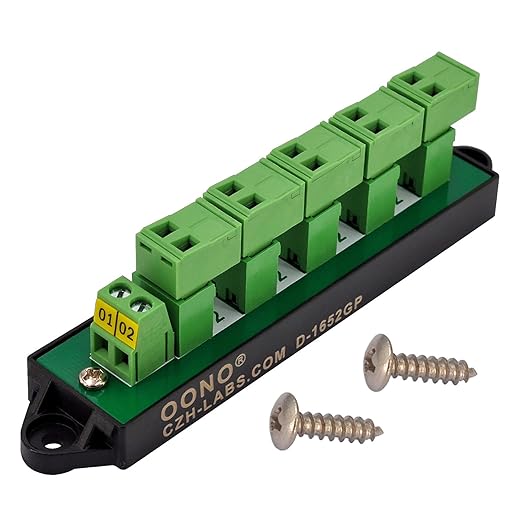

The 16Amp 300V 2x6 Position Pluggable Terminal Block Distribution Module. OONO D-1652GP is a Screw product. It features 16amp 300v 2x6 position screw pluggable terminal block distribution module..
Key Features
- 16Amp 300V 2x6 position screw pluggable terminal block distribution module.
- Rated current 16 Amp(per pole total input or output), Maximum voltage 300V.
- Input: 1x 2 pole screw terminal block, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

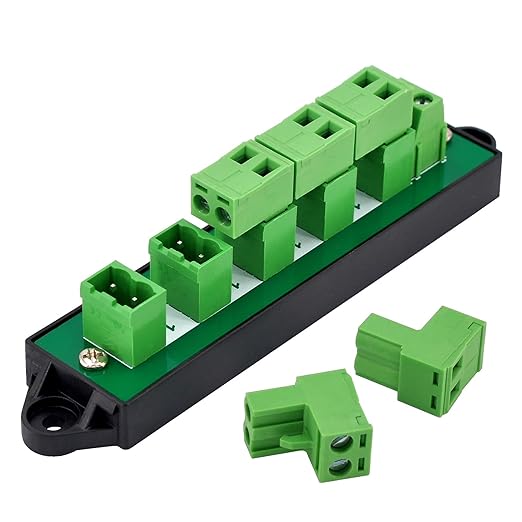

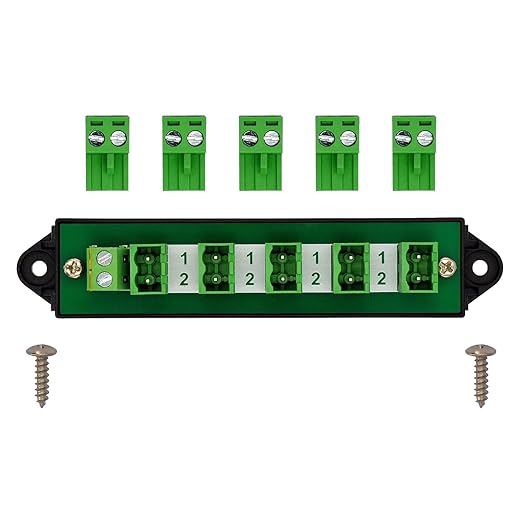

- Output: 5x 2 pole pluggable screw terminal blocks, Pitch 5.08mm/0.2", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

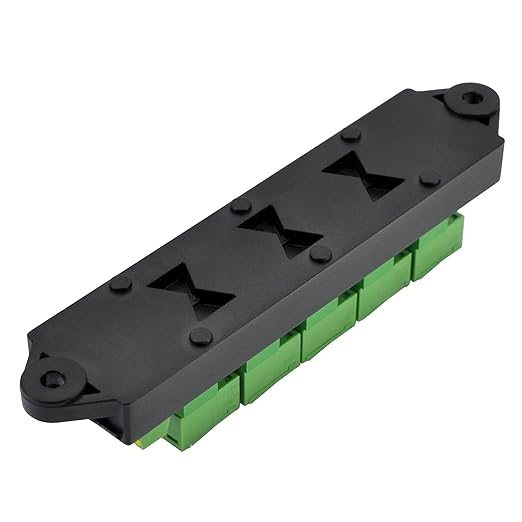

- UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.
Why Choose the 16Amp 300V 2x6 Position Pluggable Terminal Block Distribution Module. OONO D-1652GP
The 16Amp 300V 2x6 Position Pluggable Terminal Block Distribution Module. OONO D-1652GP offers 16amp 300v 2x6 position screw pluggable terminal block and rated current 16 amp(per pole total input or. These features make the 16Amp 300V 2x6 Position Pluggable Terminal Block Distribution Module. OONO D-1652GP a strong option in the Screw category.
Best For
The 16Amp 300V 2x6 Position Pluggable Terminal Block Distribution Module. OONO D-1652GP is best suited for everyday screw needs.
Quick Summary
The 16Amp 300V 2x6 Position Pluggable Terminal Block Distribution Module. OONO D-1652GP is a Screw product by OONO. Current Rating: 16 Amps. Item Pitch: 5 Millimeters. Gauge: 0.01. Connector Type: Screw. Number Of Contacts: 12. Price: $21.43.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 16 Amps |
| Item Pitch | 5 Millimeters |
| Gauge | 0.01 |
| Connector Type | Screw |
| Number Of Contacts | 12 |
| Mounting Type | Panel Mount |
| Material | Plastic |
| Brand | OONO |
| Voltage | 300 Volts |
| Number Of Poles | 2 |
