Product Overview

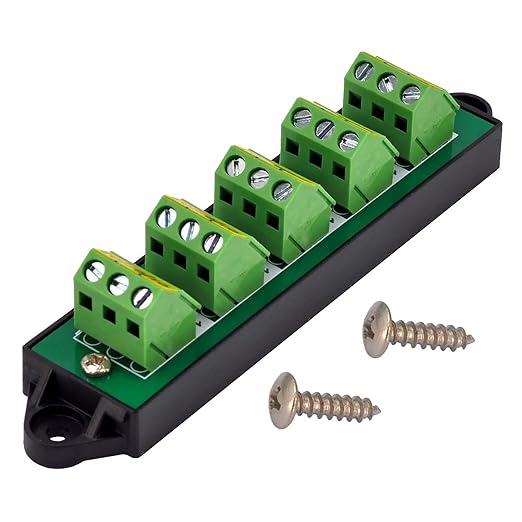

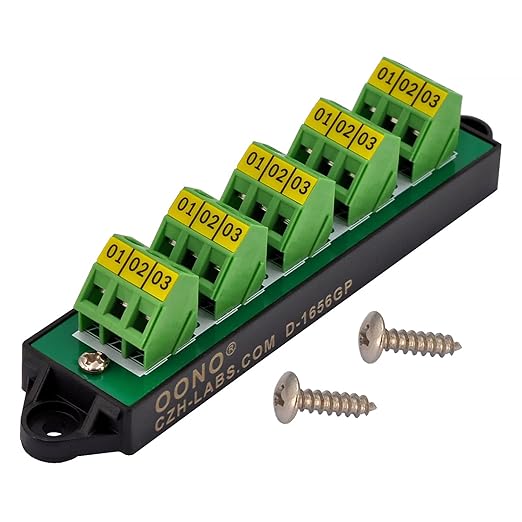

The 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP is a Screw product. It features 16amp 300v 3x5 position screw terminal block distribution module..
Key Features
- 16Amp 300V 3x5 position screw terminal block distribution module.
- Rated current 16 Amp(per pole total input or output), Maximum voltage 300V.
- Screw terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.
Why Choose the 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP
The 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP offers 16amp 300v 3x5 position screw terminal block distribution and rated current 16 amp(per pole total input or. These features make the 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP a strong option in the Screw category.
Best For
The 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP is best suited for everyday screw needs.
Quick Summary
The 16Amp 300V 3x5 Position Terminal Block Distribution Module. OONO D-1656GP is a Screw product by OONO. Current Rating: 16 Amps. Gauge: 0.01. Connector Type: Screw. Number Of Contacts: 15. Mounting Type: PCB Mount. Price: $21.43.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 16 Amps |
| Gauge | 0.01 |
| Connector Type | Screw |
| Number Of Contacts | 15 |
| Mounting Type | PCB Mount |
| Material | Polycarbonate (PC) |
| Brand | OONO |
| Number Of Poles | 15 |

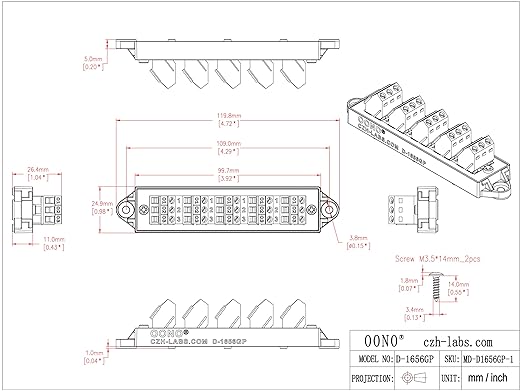

| Product Dimensions | 4.72"W x 0.97"H |
| Specification Met | RoHS |
