Name: 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT
Brand: ZJWZJH
SKU: SPH-B09QQJ3ZKD
Price: 42.88 USD
Availability: InStock

3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT

$42.88

3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT

$42.88

Shipping calculated at checkout.

Product Overview

The ZJWZJH 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator is a Electromechanical Relays product by ZJWZJH. It features 【certifications】 power relay through ul and vde certification, socket through.

Key Features

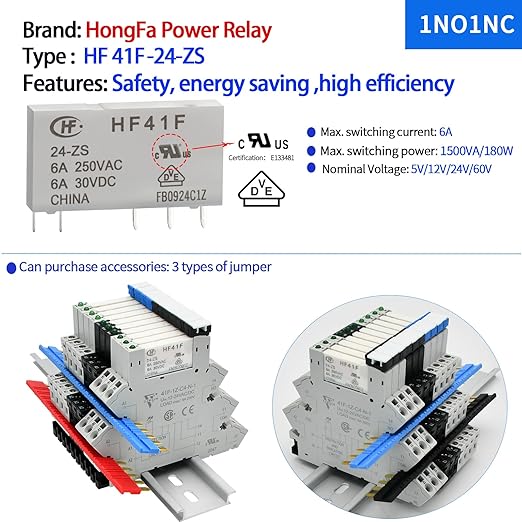

【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
【Electromechanical Relays】Relay Coil Voltage: 5V DC, Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin; Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied. Mechanical life: 10,000,000 Cycles; Electrical life: 300,000 Cycles.

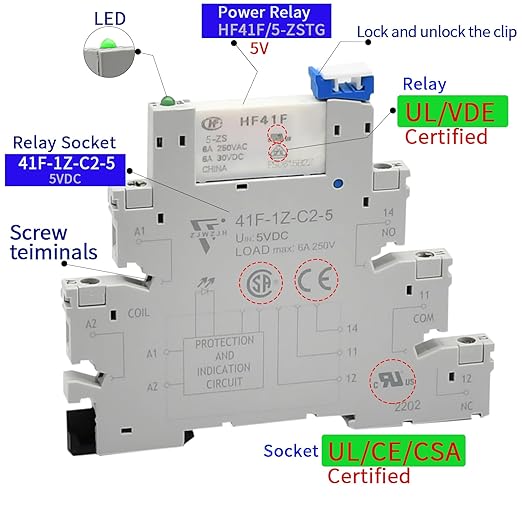

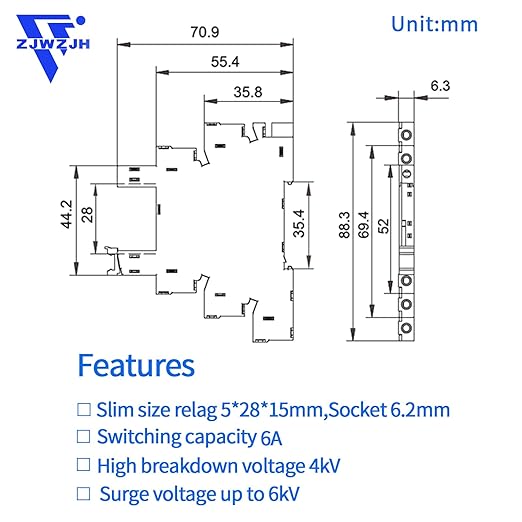

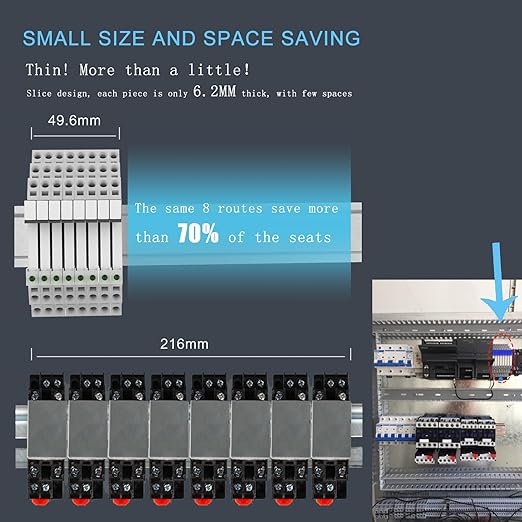

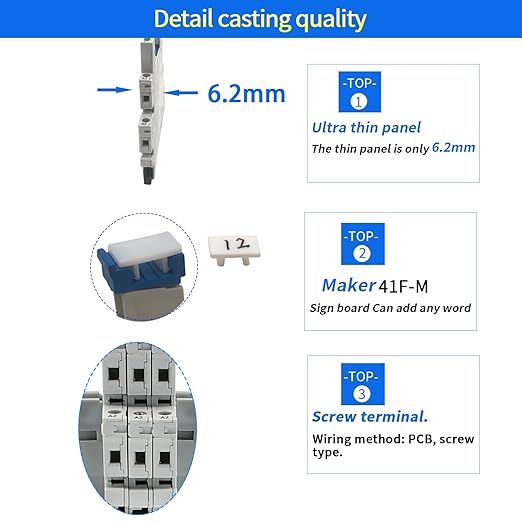

Relay Model:HF41F/5-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W)
Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").

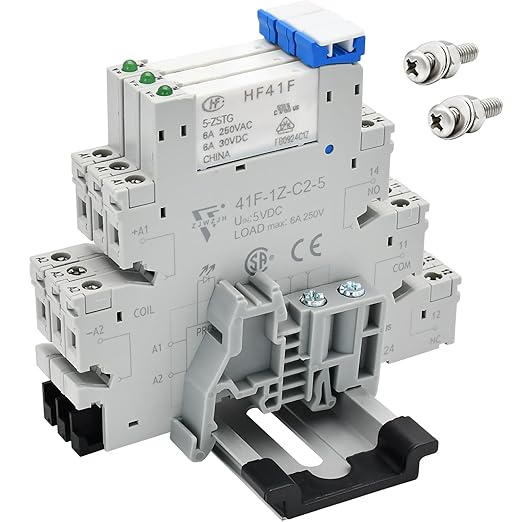

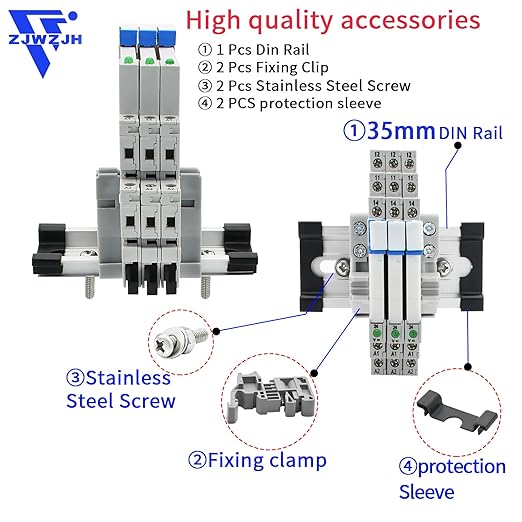

【Package】Package Content : 3× Power Relay , 3× Socket Base, 1x 35mm DIN Rail Slotted Aluminum , 2×Screw.Ambient temperature: -40℃ ~ 70℃.

Why Choose the ZJWZJH 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator

The ZJWZJH 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator offers 【certifications】 power relay through ul and vde certification, and 【electromechanical relays】relay coil voltage: 5v dc, contact :. These features make the ZJWZJH 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator a strong option in the Electromechanical Relays category.

Best For

The ZJWZJH 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator is best suited for everyday electromechanical relays needs.

Quick Summary

The ZJWZJH 3 Pcs Miniature 5 Volt DC Relay HF41F/5-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Tin Oxide. Contact Type: Spdt. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $42.88.

Product Specifications

Specification	Details
Connector Type	Screw
Contact Material	Silver Tin Oxide
Contact Type	Spdt
Current Rating	6 Amps
Mounting Type	DIN Rail Mount
