Product Overview

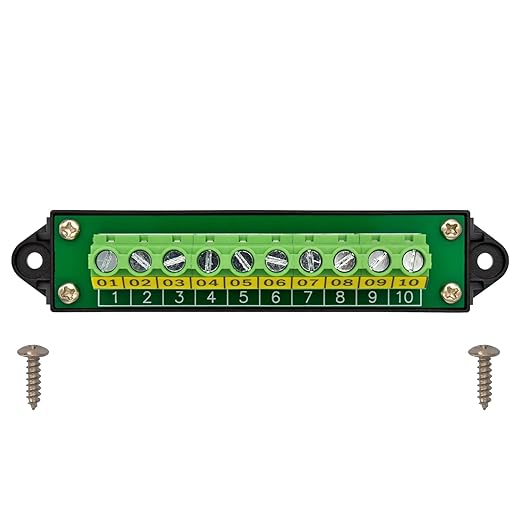

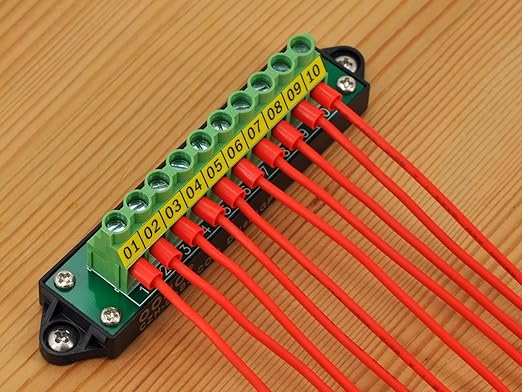

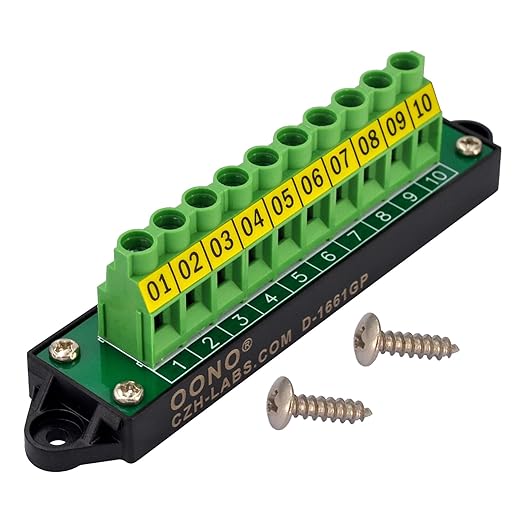

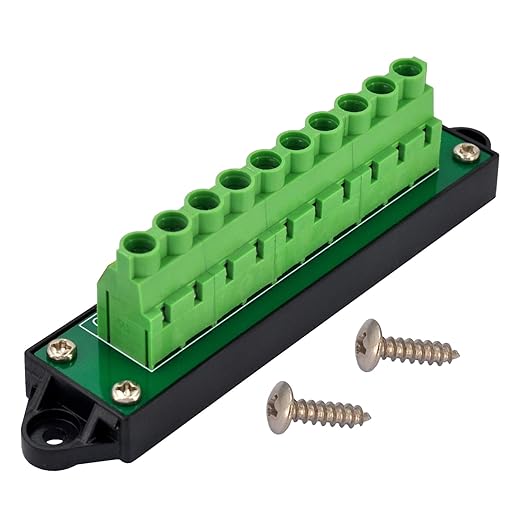

The 30Amp 300V 1x10 Position Terminal Block Distribution Module. OONO D-1661GP is a Screw product. It features 30 amp 300v 1x10 position screw terminal block distribution module..
Key Features
- 30 Amp 300V 1x10 position screw terminal block distribution module.
- Rated current 30 Amp(per pole total input or output), Maximum voltage 300V.
- Screw terminal blocks, Pitch 7.62mm/0.197", Wire range 26AWG ~ 10AWG / 4mm square. Rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

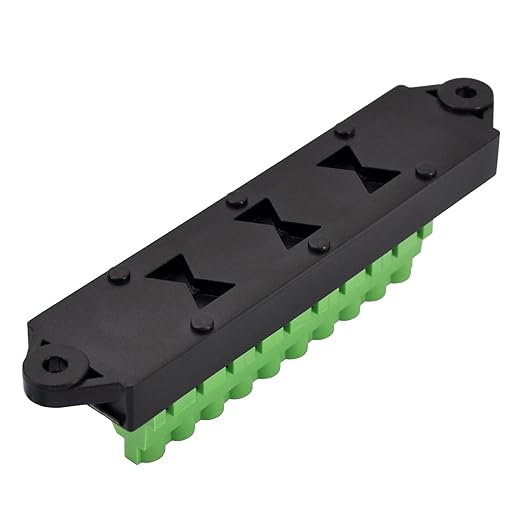

- UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.
Why Choose the 30Amp 300V 1x10 Position Terminal Block Distribution Module. OONO D-1661GP
The 30Amp 300V 1x10 Position Terminal Block Distribution Module. OONO D-1661GP offers 30 amp 300v 1x10 position screw terminal block and rated current 30 amp(per pole total input or. These features make the 30Amp 300V 1x10 Position Terminal Block Distribution Module. OONO D-1661GP a strong option in the Screw category.
Best For
The 30Amp 300V 1x10 Position Terminal Block Distribution Module. OONO D-1661GP is best suited for everyday screw needs.
Quick Summary
The 30Amp 300V 1x10 Position Terminal Block Distribution Module. OONO D-1661GP is a Screw product by OONO. Gauge: 0.01. Connector Type: Screw. Number Of Contacts: 10. Material: Polycarbonate (PC). Brand: OONO. Price: $21.43.
Product Specifications
| Specification | Details |
|---|---|
| Gauge | 0.01 |
| Connector Type | Screw |
| Number Of Contacts | 10 |
| Material | Polycarbonate (PC) |
| Brand | OONO |

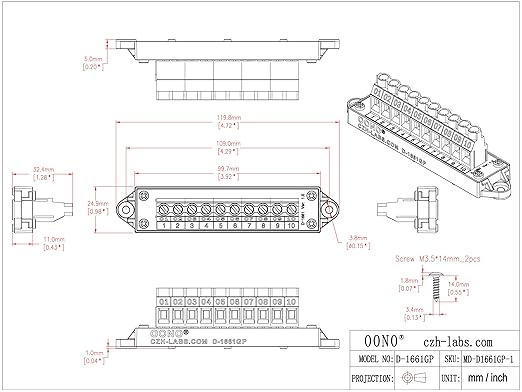

| Product Dimensions | 4.72"W x 0.97"H |
| Specification Met | RoHS |
