Product Overview
The BIGTREETECH TFT35 SPI V2.1 Graphic Smart Display Compatible BTT Manta M8P/M4P/M5P is a 3D Printer Accessories product. It features lcd display adopts spi, touch adopts i2c communication mode, and.
Key Features
- LCD display adopts SPI, touch adopts I2C communication mode, and shares the main control chip with the motherboard, which greatly reduces the cost of touch screen
- Each motor drive shall select power supply, motor power supply or main power supply (heating rod power supply) separately

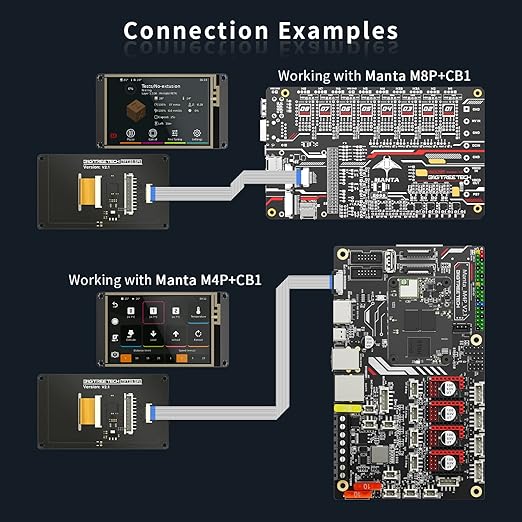

- It is connected with the main board through FPC cable, which is simple and convenient to operate
- Designed with XH2.54 terminal, which can communicate with the board through the terminal

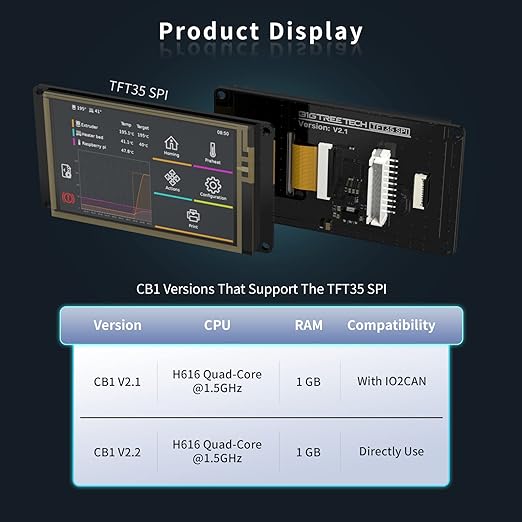

- Currently, it only supports BIGTREETECH CB1. If you use CB1 V2.2, you only need to use with TFT35 SPI V2.1; If you use CB1 V2.1, you need to use with TFT35 SPI V2.1+IO2CAN V1.0. If you have any questions, you can write us at any time, and we will answer your questions
Why Choose the BIGTREETECH TFT35 SPI V2.1 Graphic Smart Display Compatible BTT Manta M8P/M4P/M5P
The BIGTREETECH TFT35 SPI V2.1 Graphic Smart Display Compatible BTT Manta M8P/M4P/M5P offers lcd display adopts spi, touch adopts i2c communication and each motor drive shall select power supply, motor. These features make the BIGTREETECH TFT35 SPI V2.1 Graphic Smart Display Compatible BTT Manta M8P/M4P/M5P a strong option in the 3D Printer Accessories category.
Best For
The BIGTREETECH TFT35 SPI V2.1 Graphic Smart Display Compatible BTT Manta M8P/M4P/M5P is best suited for: Touchscreen, Klipper Firmware Support.
Quick Summary
The BIGTREETECH TFT35 SPI V2.1 Graphic Smart Display Compatible BTT Manta M8P/M4P/M5P is a 3D Printer Accessories product by BIGTREETECH. Brand: BIGTREETECH. Screen Size: 3.5 Inches. Resolution: 480x320. Display Resolution Maximum: 480x320. Special Feature: Touchscreen, Klipper Firmware Support. Price: $49.47.

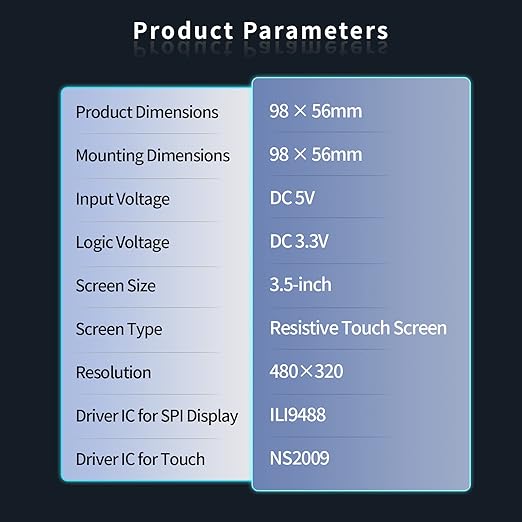

Product Specifications
| Specification | Details |
|---|---|
| Brand | BIGTREETECH |

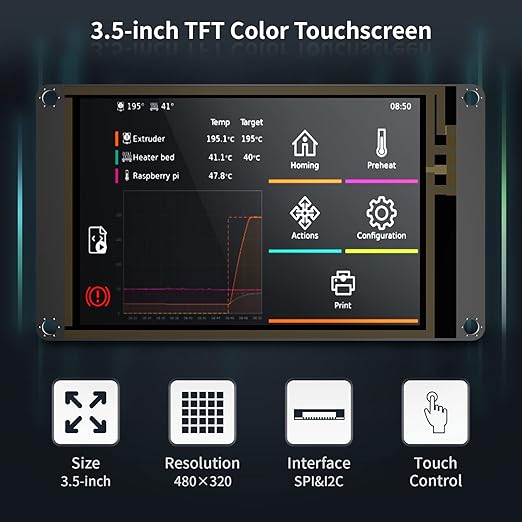

| Screen Size | 3.5 Inches |

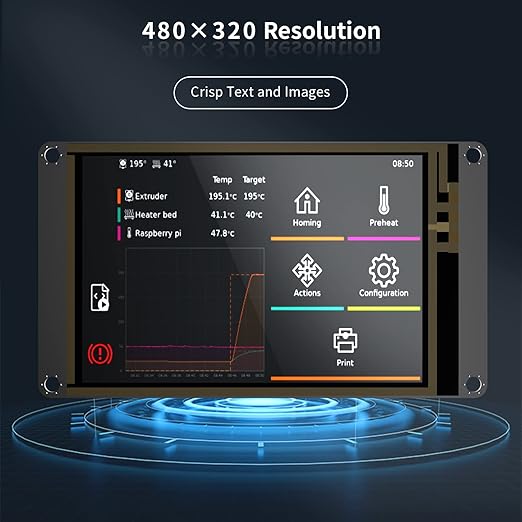

| Resolution | 480x320 |
| Display Resolution Maximum | 480x320 |
| Special Feature | Touchscreen, Klipper Firmware Support |
