Product Overview

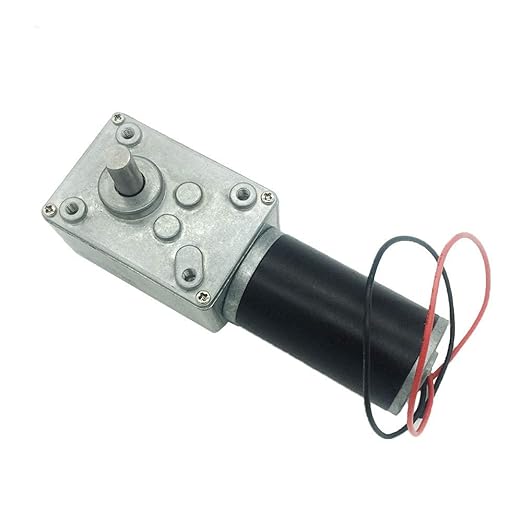

The Bringsmart Self-Locking 24V 160rpm DC Worm Gear Motor 10kg.cm Reversed Mini Turbine Geared Motor for DIY Robot Curtain Machine Rotating Table Door Lock (24V 160rpm) is a Worm Gears product. It features rated voltage-24v dc, no load speed-160rpm, no load current-100ma, rated.
Key Features

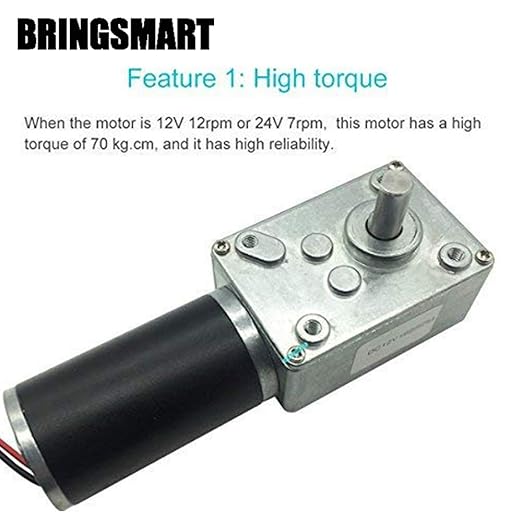

- Rated voltage-24V DC, No load speed-160rpm, no load current-100mA, Rated speed-130rpm, rated torque-6.2kg.cm, rated current-0.6A, Reducer ratio-1:31

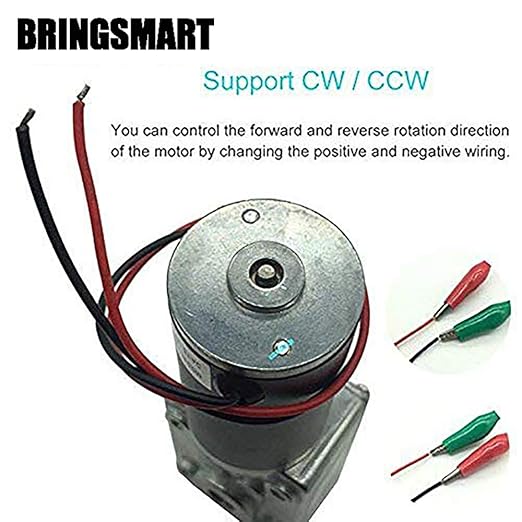

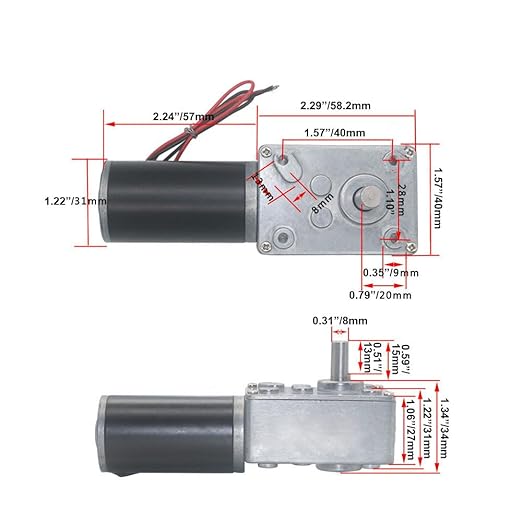

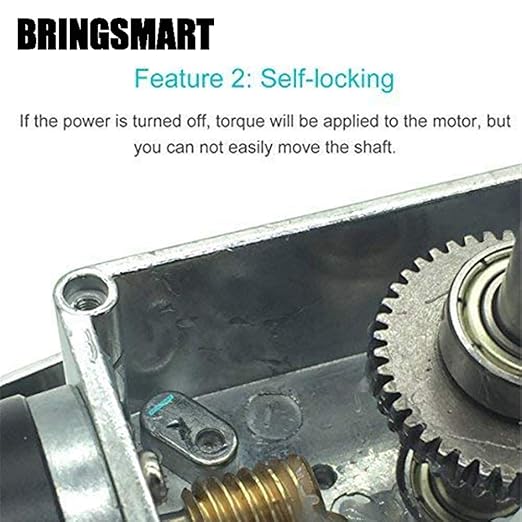

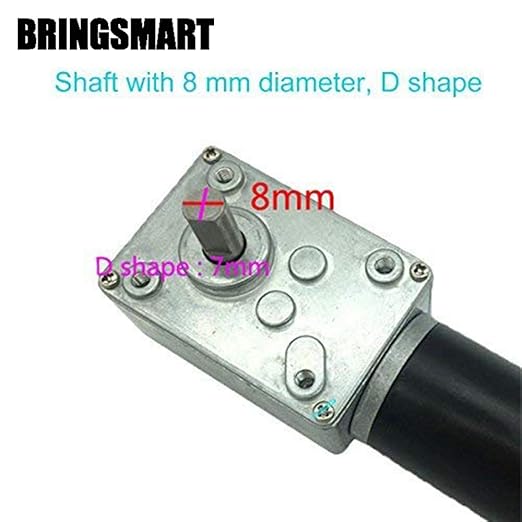

- Feature: Output Shaft Diameter: 8mm; The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation. -Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock. -The reducer output shaft arranged vertically with the motor shaft, whole motor output

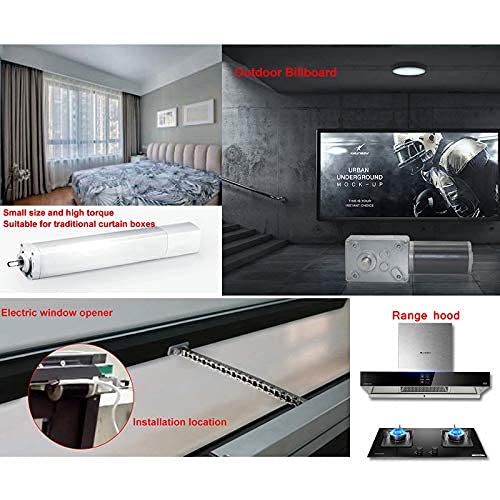

- Application: bank equipment, safe box, paper feeder, intelligent gas meter, tissue machine, accessory of automobile, ad equipment, analysis instrument, electronic game machine,electrical appliances including remote control curtains, locks, paper shredders, copying machines, and safes Inner.
- What You Get: 1pcs x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.
- [Insurance] Any quality issues, we promise unconditional return service. If you need other voltage and rpm, please feel free to contact us! If you have any question about the motor, please also contact us. We will try our best to reply you asap.
Why Choose the Bringsmart Self-Locking 24V 160rpm DC Worm Gear Motor 10kg.cm Reversed Mini Turbine Geared Motor for DIY Robot Curtain Machine Rotating Table Door Lock (24V 160rpm)
The Bringsmart Self-Locking 24V 160rpm DC Worm Gear Motor 10kg.cm Reversed Mini Turbine Geared Motor for DIY Robot Curtain Machine Rotating Table Door Lock (24V 160rpm) offers rated voltage-24v dc, no load speed-160rpm, no load and feature: output shaft diameter: 8mm; the motor is. These features make the Bringsmart Self-Locking 24V 160rpm DC Worm Gear Motor 10kg.cm Reversed Mini Turbine Geared Motor for DIY Robot Curtain Machine Rotating Table Door Lock (24V 160rpm) a strong option in the Worm Gears category.
Best For
The Bringsmart Self-Locking 24V 160rpm DC Worm Gear Motor 10kg.cm Reversed Mini Turbine Geared Motor for DIY Robot Curtain Machine Rotating Table Door Lock (24V 160rpm) is best suited for everyday worm gears needs.
Quick Summary
The Bringsmart Self-Locking 24V 160rpm DC Worm Gear Motor 10kg.cm Reversed Mini Turbine Geared Motor for DIY Robot Curtain Machine Rotating Table Door Lock (24V 160rpm) is a Worm Gears product by BRINGSMART. Brand: BRINGSMART. Model Name: gear. Speed: 160 RPM. Voltage: 24 Volts. Material: Paper. Price: $47.8.
Product Specifications
| Specification | Details |
|---|---|
| Brand | BRINGSMART |
| Model Name | gear |
| Speed | 160 RPM |
| Voltage | 24 Volts |
| Material | Paper |
