Product Overview
The BTF-LIGHTING DC12v-24v MAX 3A Touchless Hand Wave Mini IR Sensor Switch Controller Work with Low Voltage FCOB COB Monochrome Lamp Suit for Cabinets is a LED Strip Lights product. It features support the led ： suitable for the pwm monochrome led.
Key Features

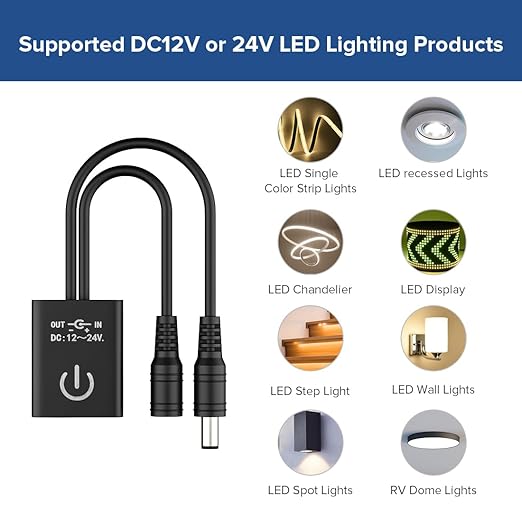

- Support the LED ： Suitable for the PWM monochrome LED Strip Lights like FCOB COB 5630 2835 3528 5630 5730 5050 3014 etc Without IC chip V+ V- Two wires single color LED strip, LED Recessed Lights, LED Chandelier, LED Display, LED Step Lights, LED Wall Lights, LED Spot Lights, RV Dome Lights and so on.

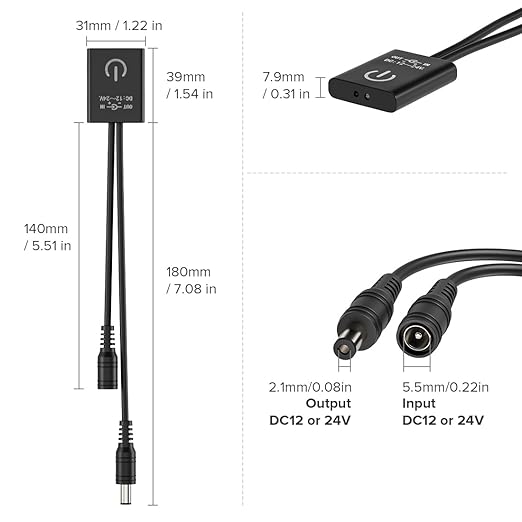

- Work Voltage range ：DC12V-24V, output Max 3A (DC12V3A 36W, DC24V3A 72W), Output Voltage=Input Voltage. IN icon : Power inport. OUT icon : Power Oport. DC plug connector external diameter is 5.5mm, internal diameter is 2.1~2.5mm.

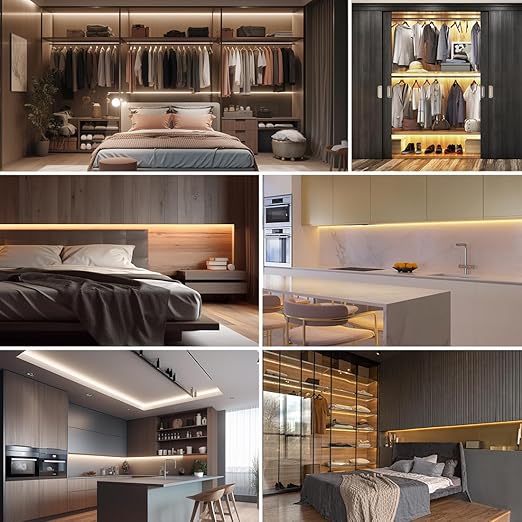

- Easy to Install：Plug play with led strips; Indoor use only. Use come with adhesive tape to fix it to a clean, flat surface. Suitable for Cabinets, Counters, Drawers, Doors, Lighting Accessories.

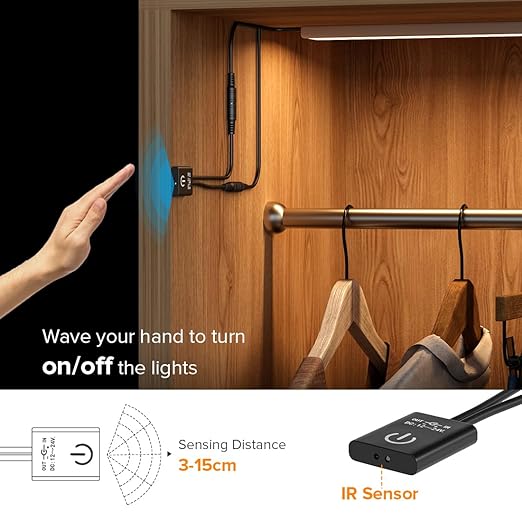

- Mini IR Sensor Switch : It's a IR Sensor Switch. After connecting it to the DC12V or DC24V LED, use adhesive tape to stick the sensor switch into a clean and flat cabinet.To operate, just wave your hand above the sensor—once to turn the light on, and again to turn it off.

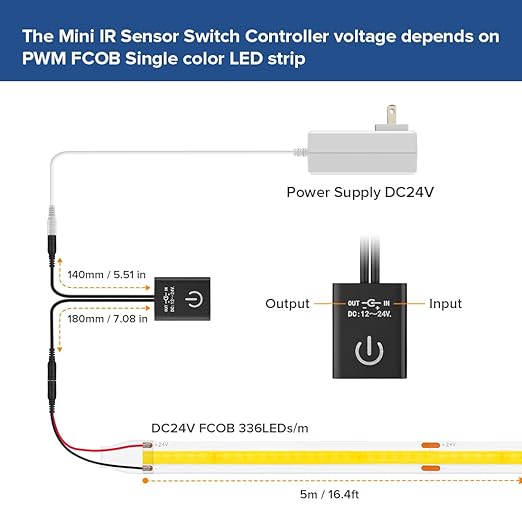

- Note: 1. Please do not wire backwards, otherwise the Mini IR Sensor Switch Controller will overheat and short-circuit. 2. The Mini IR Sensor Switch Controller voltage depends on PWM FCOB Single color LED strip . For example, If use DC12V PWM FCOB single color LED Strip , you should use the DC12V3A 36W power supply to power it.

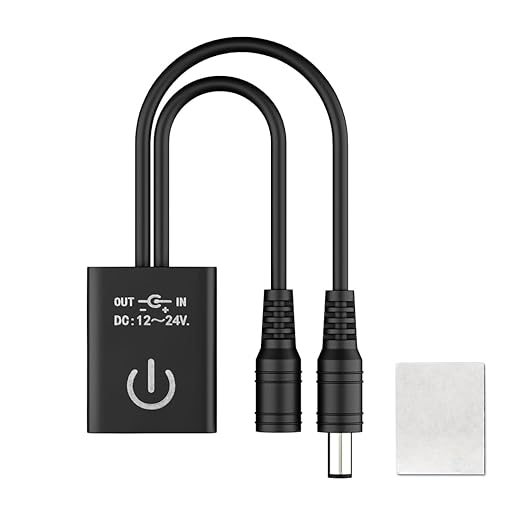

- Package Content: 1x Mini IR Switch Controller, 1x adhesive tape.
Why Choose the BTF-LIGHTING DC12v-24v MAX 3A Touchless Hand Wave Mini IR Sensor Switch Controller Work with Low Voltage FCOB COB Monochrome Lamp Suit for Cabinets
The BTF-LIGHTING DC12v-24v MAX 3A Touchless Hand Wave Mini IR Sensor Switch Controller Work with Low Voltage FCOB COB Monochrome Lamp Suit for Cabinets offers support the led ： suitable for the pwm and work voltage range ：dc12v-24v, output max 3a (dc12v3a. These features make the BTF-LIGHTING DC12v-24v MAX 3A Touchless Hand Wave Mini IR Sensor Switch Controller Work with Low Voltage FCOB COB Monochrome Lamp Suit for Cabinets a strong option in the LED Strip Lights category.
Best For
The BTF-LIGHTING DC12v-24v MAX 3A Touchless Hand Wave Mini IR Sensor Switch Controller Work with Low Voltage FCOB COB Monochrome Lamp Suit for Cabinets is best suited for: the PWM monochrome LED Strip Lights like FCOB COB 5630 2835 3528 5630 5730 5050 3014 etc Without IC chip V+ V- Two wires single color LED strip, Cabinets.
Quick Summary
The BTF-LIGHTING DC12v-24v MAX 3A Touchless Hand Wave Mini IR Sensor Switch Controller Work with Low Voltage FCOB COB Monochrome Lamp Suit for Cabinets is a LED Strip Lights product by BTF-LIGHTING. Operation Mode: automatic. Current Rating: 3 Amps. Operating Voltage: 12 Volts (DC). Contact Type: Normally Open. Connector Type: Dc Plug. Price: $16.48.
Product Specifications
| Specification | Details |
|---|---|
| Operation Mode | automatic |
| Current Rating | 3 Amps |
| Operating Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Connector Type | Dc Plug |
| Brand | BTF-LIGHTING |
| Switch Type | MOSFET |
| Terminal | Solder |
| Material | Metal |
| Circuit Type | 1-way |
