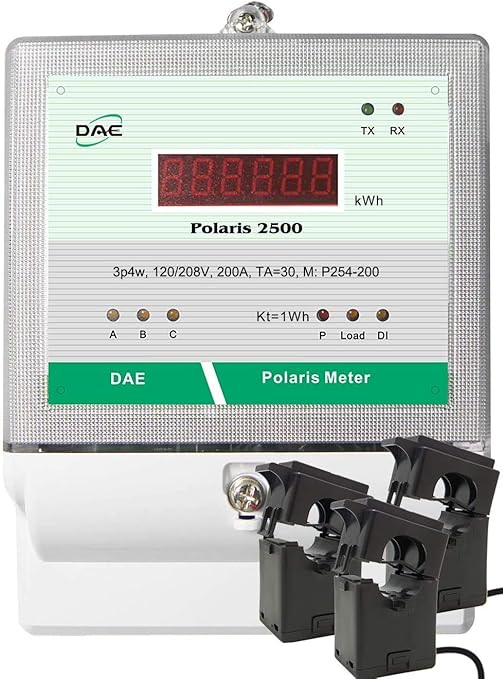

Product Overview
The DAEControls DAE P254-3000 KIT is a Power Meters product by DAEControls. It features comes with a lower cover which has two 3/4" knockouts.
Key Features

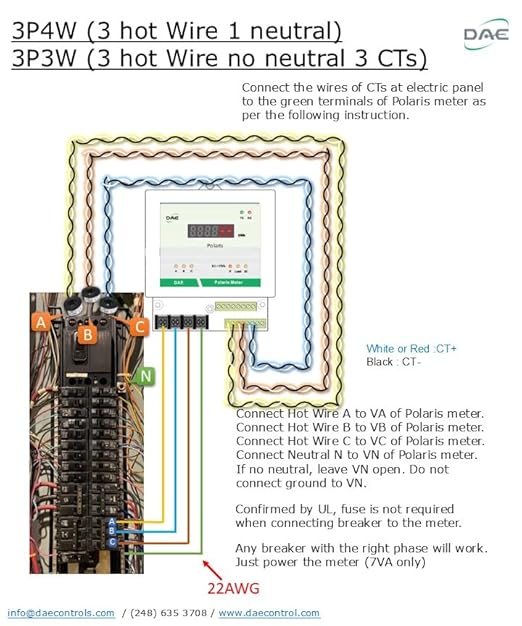

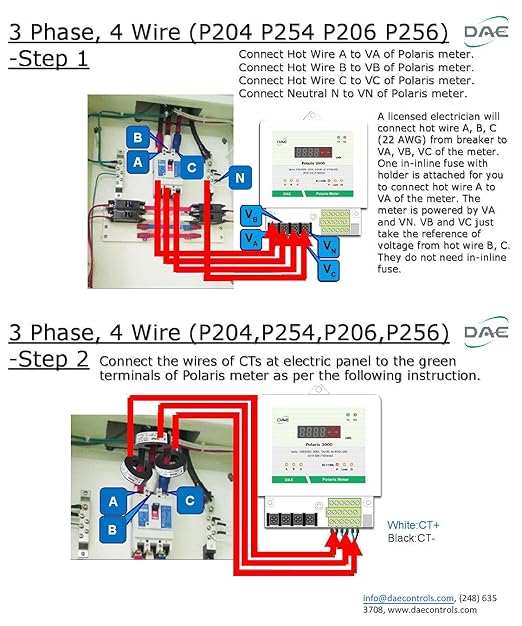

- Comes with a lower cover which has two 3/4" knockouts to connect the conduits. One in-inline fuse with holder is attached for you to connect hot wire A to VA of the meter. The meter is powered by VA and VB. VC just takes reference of voltage from hot wire C and does not need fuse. Please connect the wiring as per 5th picture.

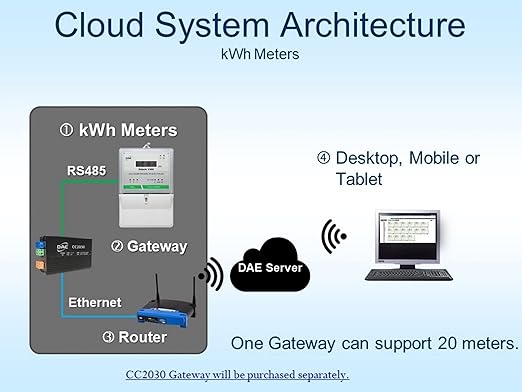

- DAE Cloud Metering (2nd picture) available with DAE CC2030 Gateway. CC2030 will collect energy data from DAE electrical meters and send them to Cloud Server through Ethernet. With PC, cell phone or tablet, landlords or property managers can get access to real time data, monthly kWh and billing reports to their tenants. TOU (Time of Use) billing reports are also available. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.

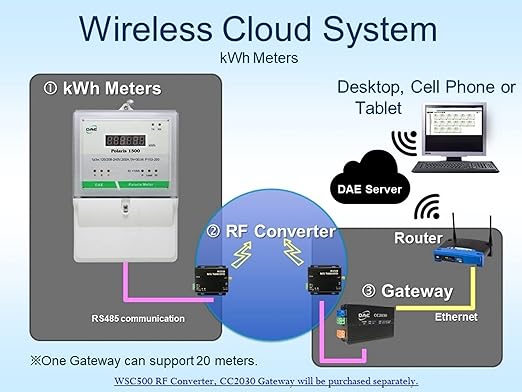

- For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly (3rd picture). Indoor use only, DAE B1725 watertight enclosure is available for outdoor use (4th picture).
- Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Following CTs are available with the meter. Split Core CTs DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A), CT-100S (100A) and Solid Core CT-600D9 (600A), CT-400D6 (400A), CT-200D3 (200A).
- For monitoring up to 8 electric panels remotely with cell phone, PC and generate billing reports, you will just need 1 SMB350-UL-8-B KIT + 1 CC2030 KIT.
Why Choose the DAEControls DAE P254-3000 KIT
The DAEControls DAE P254-3000 KIT offers comes with a lower cover which has two and dae cloud metering (2nd picture) available with dae. These features make the DAEControls DAE P254-3000 KIT a strong option in the Power Meters category.
Best For
The DAEControls DAE P254-3000 KIT is best suited for everyday power meters needs.
Quick Summary
The DAEControls DAE P254-3000 KIT is a Power Meters product by DAEControls. Brand: DAE. Style: W/ RS485, Split CTs. Color: White. Item Weight: 24.1 Pounds. Item dimensions L x W x H: 7.42 x 5 x 2.24 inches. Price: $1501.5.
Product Specifications
| Specification | Details |
|---|---|
| Brand | DAE |
| Style | W/ RS485, Split CTs |
| Color | White |
| Item Weight | 24.1 Pounds |
| Item dimensions L x W x H | 7.42 x 5 x 2.24 inches |
