Product Overview
The DiGiYes 20W Voice Playback Module DC 6-35V 24-bit DAC Output Support TF Card 32GB for Broadcast Device DIY is a Digital Voice Recorders product. It features dy-hv20t voice playback module, integrated with io segmented triggering, uart.
Key Features

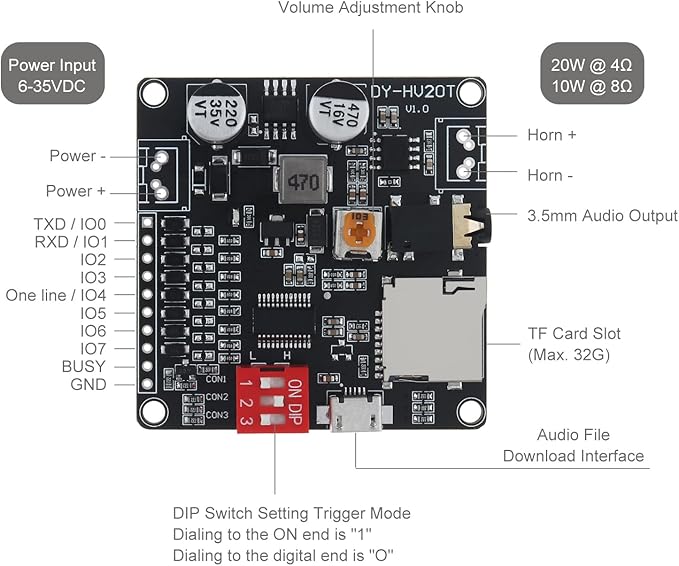

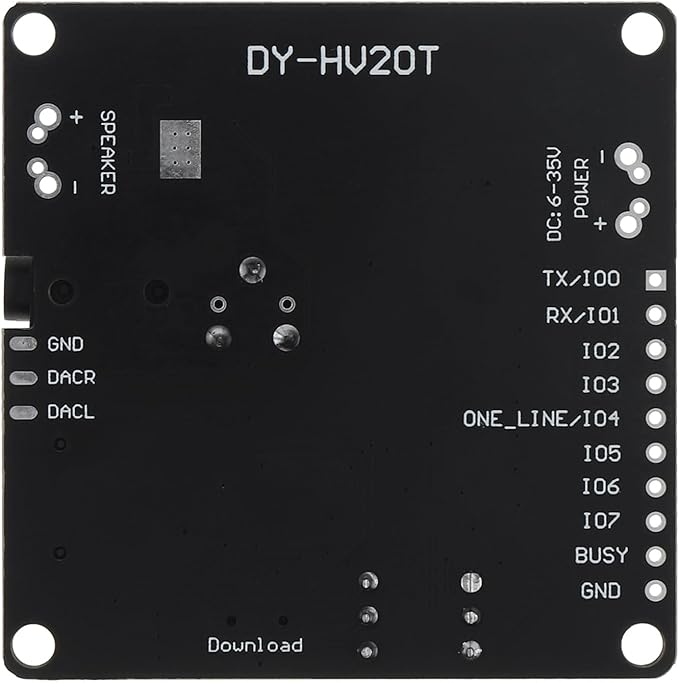

- DY-HV20T voice playback module, integrated with IO segmented triggering, UART serial port control, one line single bus serial port control, standard MP3 and other 7 working modes. On board 20W Class D amplifier, supports MP3 and WAV decoding, can play up to 8 or 255 music, supports 32G TF card, and supports USB download.
- DC 6-35V wide working voltage. 24bit DAC output, dynamic range support 90dB, SNR (Signal to Noise Ratio) support 85dB.
- Integrated mono 20W Class D high power amplifier output, capable of driving a 4ohm speaker up to 20W and an 8ohm speaker up to 10W.
- Support for one line single bus serial port control and UART serial port control voice broadcast function, can control playback, pause, song selection, volume up and down and other functions.
- 8-way IO design for ESD protection. Supports IO one-on-one trigger playback function, with 8 IO ports triggering 8 tracks individually or a combination of 8 IO ports triggering 255 tracks.
Why Choose the DiGiYes 20W Voice Playback Module DC 6-35V 24-bit DAC Output Support TF Card 32GB for Broadcast Device DIY
The DiGiYes 20W Voice Playback Module DC 6-35V 24-bit DAC Output Support TF Card 32GB for Broadcast Device DIY offers dy-hv20t voice playback module, integrated with io segmented and dc 6-35v wide working voltage. 24bit dac output,. These features make the DiGiYes 20W Voice Playback Module DC 6-35V 24-bit DAC Output Support TF Card 32GB for Broadcast Device DIY a strong option in the Digital Voice Recorders category.
Best For
The DiGiYes 20W Voice Playback Module DC 6-35V 24-bit DAC Output Support TF Card 32GB for Broadcast Device DIY is best suited for everyday digital voice recorders needs.
Quick Summary
The DiGiYes 20W Voice Playback Module DC 6-35V 24-bit DAC Output Support TF Card 32GB for Broadcast Device DIY is a Digital Voice Recorders product by DiGiYes. Compatible Devices: DIY Speakers, MP3 Player, Music Boxes. Brand: DiGiYes. Hardware Interface: 3.5mm Audio. Microphone Form Factor: Built-In. Format: MP3 Audio, WAV. Price: $14.83.
Product Specifications
| Specification | Details |
|---|---|
| Compatible Devices | DIY Speakers, MP3 Player, Music Boxes |
| Brand | DiGiYes |
| Hardware Interface | 3.5mm Audio |
| Microphone Form Factor | Built-In |
| Format | MP3 Audio, WAV |
| Headphones Jack | 3.5 millimeters |
| Memory Storage Capacity | 32 GB |
| Item Weight | 0.01 Kilograms |
| Microphone Operation Mode | Mono |
