Product Overview

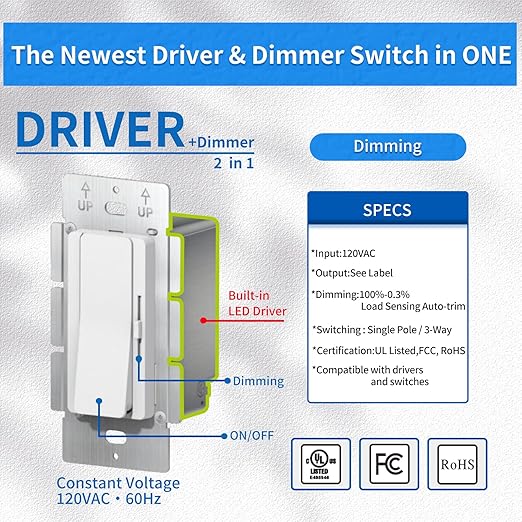

The LEDENERGYPLUS Dimmer and Driver Switch in ONE is a Dimmer Switches product by LEDENERGYPLUS. It features ul listed class 2 standard 24v for 96w, 5 years.
Key Features
- UL Listed class 2 standard 24v for 96W, 5 years warranty, input 120V, UL LISTED CONSTANT VOLTAGE driver+dimmer 2in1

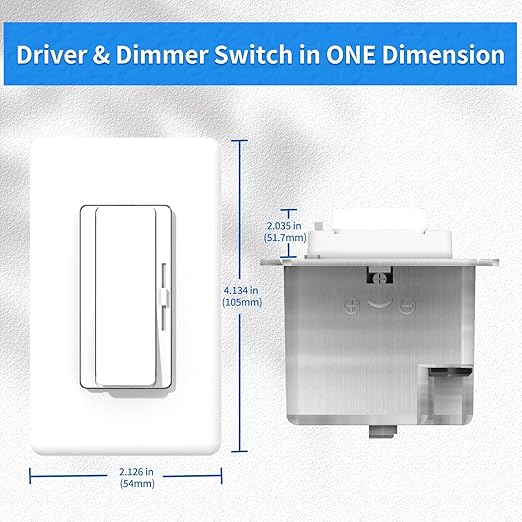

- Compact Size:105*54*51mm/4.13*2.13*2.0 inch,easy to install and hide.Ideal for various low voltage lighting projects such as LED strips, modules,cabinet and other applications
- Input Voltage:120V,built-in active PFC,typical Power Factor >0.99,THD<10%@120V Max.load, no minimum loading request,dimming range:0.3-100%,20KHZ PWM output with dimming curve is a gamma 2.2 curve Flicker-free
- Universal Compatibility: Converts 120V AC to 24V DC, driver and dimmer two all in one with slight voltage adjustment founction to solve the LEDs voltage drop problem
- Safety Protection: UL,cUL listed,Class 2 certificated, with protections of short circuit, overload, and over temperature, ensuring safety for both the power supply and your projects.
- 5 years warranty,suitable for use in dry and damp location
Why Choose the LEDENERGYPLUS Dimmer and Driver Switch in ONE
The LEDENERGYPLUS Dimmer and Driver Switch in ONE offers ul listed class 2 standard 24v for 96w, and compact size:105*54*51mm/4.13*2.13*2.0 inch,easy to install and hide.ideal for. These features make the LEDENERGYPLUS Dimmer and Driver Switch in ONE a strong option in the Dimmer Switches category.
Best For
The LEDENERGYPLUS Dimmer and Driver Switch in ONE is best suited for: various low voltage lighting projects such as LED strips, use in dry and damp location.
Quick Summary
The LEDENERGYPLUS Dimmer and Driver Switch in ONE is a Dimmer Switches product by LEDENERGYPLUS. Operation Mode: ON-OFF. Current Rating: 4 Amps. Operating Voltage: 120 Volts. Contact Type: Normally Closed. Connector Type: Screw. Price: $130.35.
Product Specifications
| Specification | Details |
|---|---|
| Operation Mode | ON-OFF |
| Current Rating | 4 Amps |
| Operating Voltage | 120 Volts |
| Contact Type | Normally Closed |
| Connector Type | Screw |
| Brand | LED ENERGY PLUS |
| Switch Type | Dimmer and Driver Switch in One |
| Terminal | Screw |
| Material | Plastic |
| Item dimensions L x W x H | 4.13 x 2.13 x 2 inches |
