Durablow TR1003 On/Off Gas Fire Fireplace Remote Control Kit + Thermostat +

Product Overview

The Durablow TR1003 On/Off Gas Fire Fireplace Remote Control Kit + Thermostat + Timer with LCD Screen for Millivolt Valve is a Remotes & Thermostats product. It features this device is not a power supply/ignitor unit. (no voltage.

Key Features

• This device is NOT a power supply/Ignitor unit. (No voltage output itself, but passing voltage from your fireplace thermopile for safety reason). If using it as a switch, please connect it with power source or circuit in series.▼ Durablow battery powered R.F. + LCD screen transmitter and receiver kits give wireless remote control to a gas heating appliance, such as gas fireplace. ▼ Childproof safety lock available. ▼ The controllable temperature range is from 45℉ (7℃) to 99℉ (37℃).

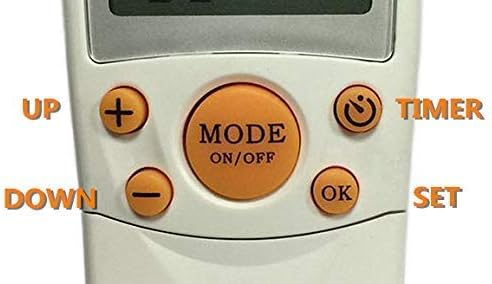

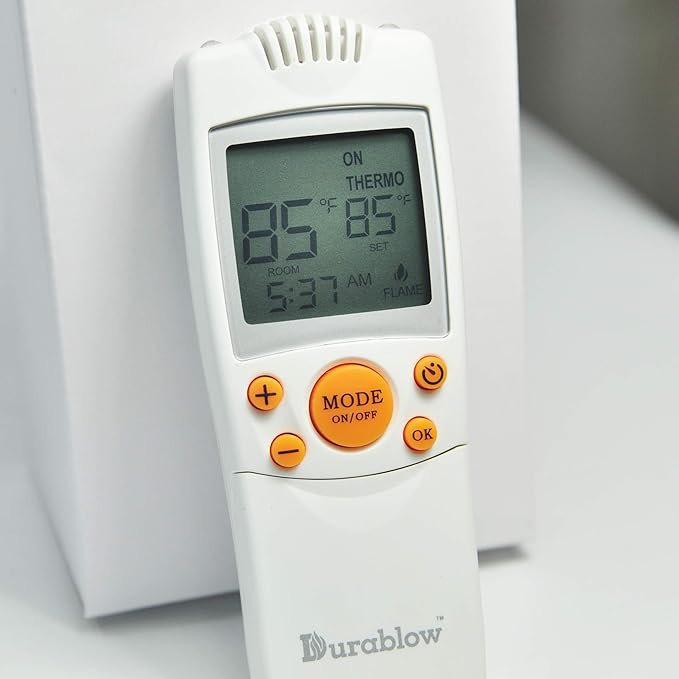

• Thermostat feature in transmitter turns ON/OFF when the room temperature changes. It also operates the fireplace with room temperature swings 1 °F, 2 °F, or 3 °F. ▼ The timer feature operates with options ranging from a 15-minute minimum to a 9-hour maximum. ▼ FCC approved. Operates within a 20-foot range & in a non-directional RF signal evironment.

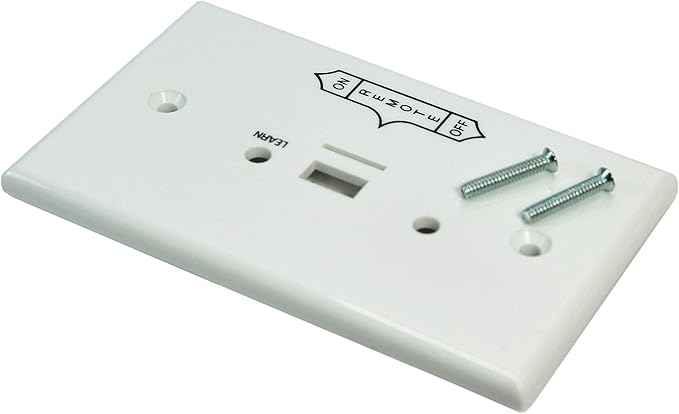

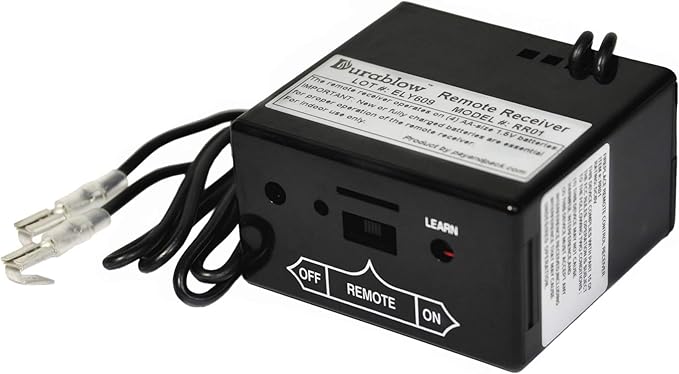

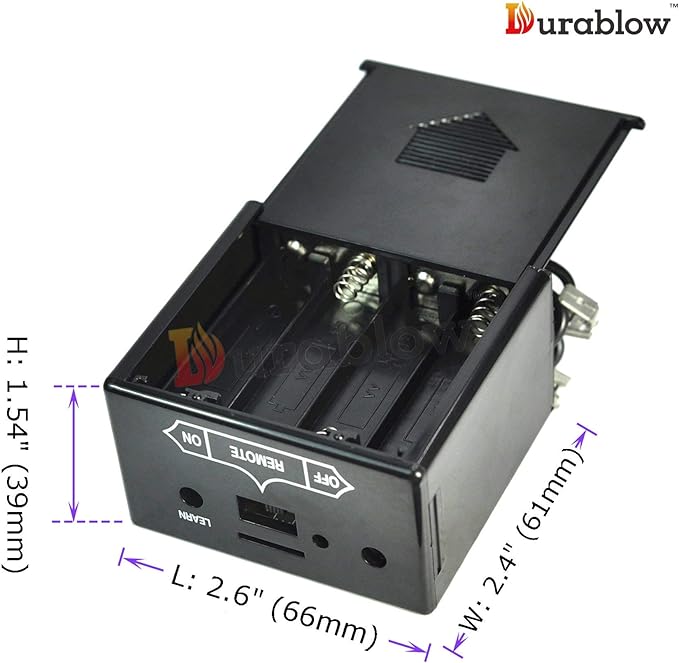

• Receiver with LEARN function, snap-on wall plate, and 18-inch wires with connectors to gas MILLIVOLT valve or electric spark ignition module. ▼ Receiver BOX DIMENSION: 2.6"x2.4"x1.54". (Please measure your wall outlet box first)
• SKY, 9800322, 9800323, 9800324, 9800326, 9800328, 9800329, 9800550, 9800580, 1001-A, 1001, 1001TH, 1001T, 1410T, 1410-A, 1410TH, 3002, 3301, CON, RCK-K, RCK-KS, 5001, 5010, 5301, 5310, 55644, HRC200, RG04-1M, UN3. If the model you're seeking isn't listed, please reach out for further details.▼ LEGAL DISCLAIMER: The brand name and model number are listed for cross-reference only. All trademarks and model numbers remain the property of their respective owners.

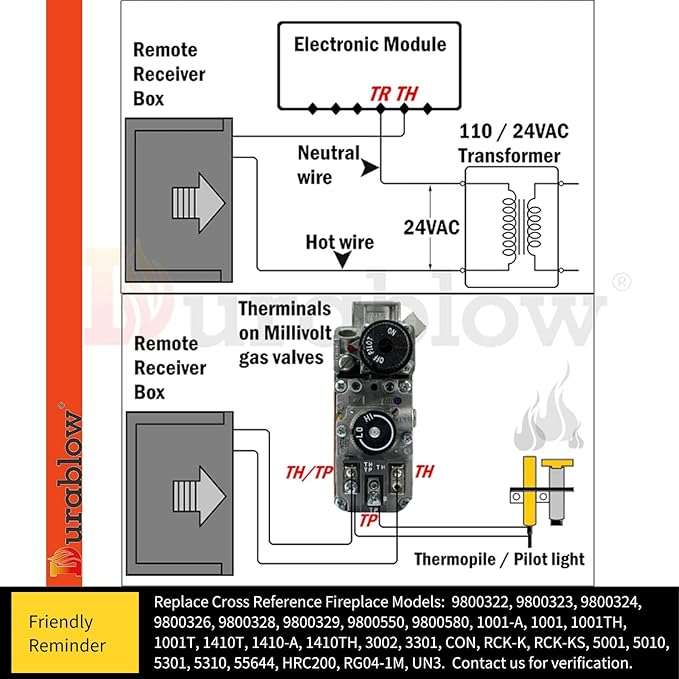

• To find a compatible remote for your gas fireplace, first determine the type of gas valve it uses. This information is usually in the installation manual under "Wiring Diagram" or on the rating plate inside or behind the fireplace. If you don't have the manual, search online using your model number. Our remotes are compatible with Millivolt valves that have TH and TH/TP terminals.
• ONLY qualified electrician / gas technician with the knowledge of gas appliances and gas valves that are premitted to install the remote control system. Incorrect wiring installation will damage the gas valve, electronic module of gas appliance and also the remote receiver.

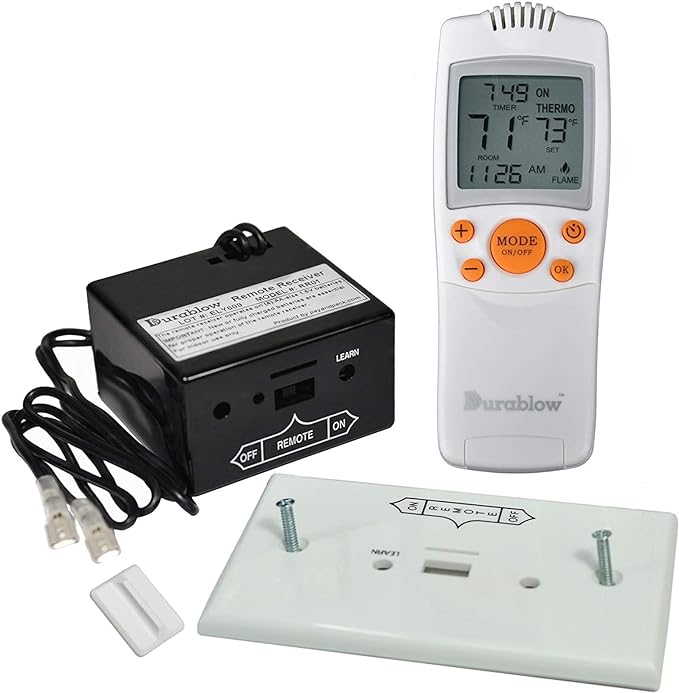

• Remote transmitter, receiver box, wall mount cover plate, screws, slide switch, wires with connectors, and manuals/instructions for your easy installation.▼ Transmitter operates (2) 1.5V AAA batteries; Receiver operates 4 (AA) batteries.(batteries are not included) ▼ Strongly recommend Energizer Lithium Batteries. ATTENTION: Any corrosion caused by batteries leak will be regarded as improper use by user.

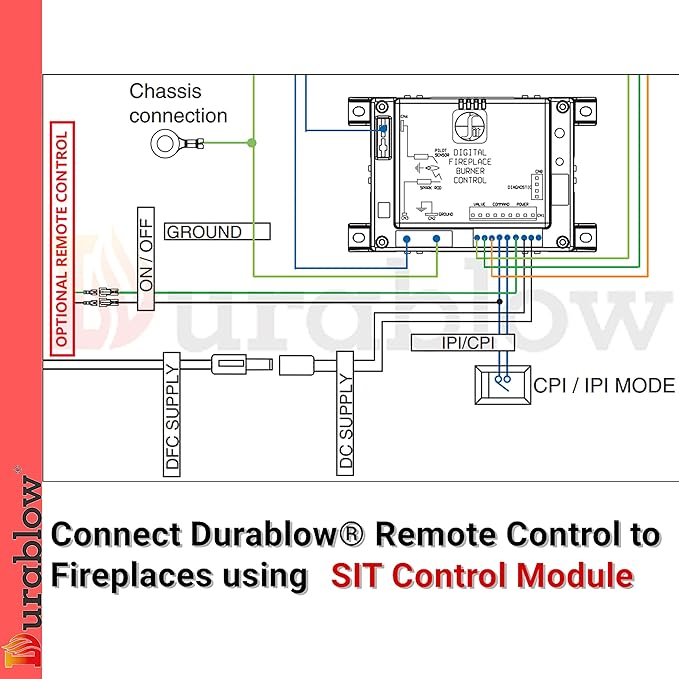

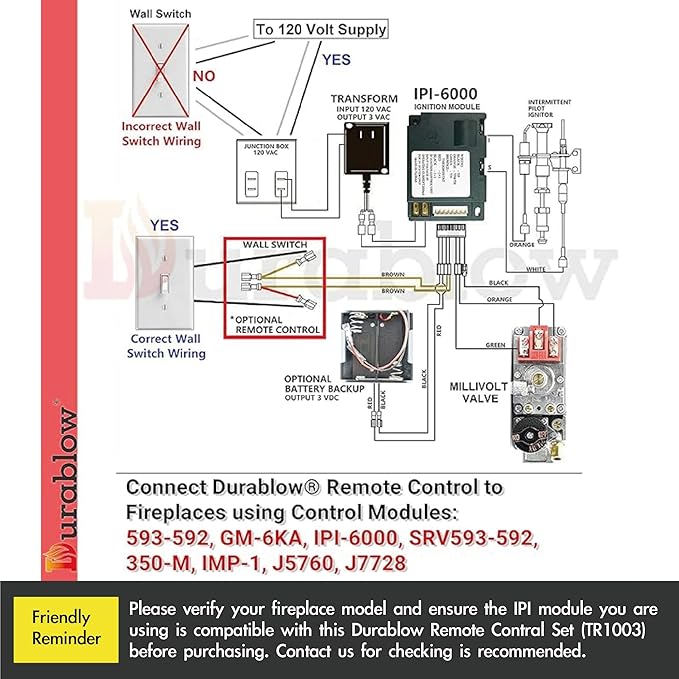

• ★ TO WIRE DEXEN or S.I.T ELECTRONIC IPI PILOT IGNITION CONTORL MODULE, find the "OPTIONAL REMOTE CONTROL" wires to connect Durablow remote control kits. ATTENTION: Please confirm your IPI module of fireplace is suitable for TR1003 before purchasing. Reference Compatible Model: 593-592, GM-6KA, IPI-6000, SRV593-592, 350-M, IMP-1, J5760, J7728. If the model you're seeking isn't listed, please reach out for further details.
• Durablow remote control is not a ignitor. To ensure readiness after installation, please check the following: 1. Position the receiver and transmitter within use distance. 2. Check if Millivolt valve is at IGNITE mode.3. Check if IPI control is working. For technical questions, please visit the Durablow Brand Store FAQ section for reference or contact us.

Why Choose the Durablow TR1003 On/Off Gas Fire Fireplace Remote Control Kit + Thermostat + Timer with LCD Screen for Millivolt Valve

The Durablow TR1003 On/Off Gas Fire Fireplace Remote Control Kit + Thermostat + Timer with LCD Screen for Millivolt Valve offers this device is not a power supply/ignitor unit. and thermostat feature in transmitter turns on/off when the. These features make the Durablow TR1003 On/Off Gas Fire Fireplace Remote Control Kit + Thermostat + Timer with LCD Screen for Millivolt Valve a strong option in the Remotes & Thermostats category.

Best For

The Durablow TR1003 On/Off Gas Fire Fireplace Remote Control Kit + Thermostat + Timer with LCD Screen for Millivolt Valve is best suited for: TR1003 before purchasing.

Quick Summary

The Durablow TR1003 On/Off Gas Fire Fireplace Remote Control Kit + Thermostat + Timer with LCD Screen for Millivolt Valve is a Remotes & Thermostats product by Durablow. Operation Mode: ON-OFF. Connector Type: Spade Connector. Brand: Durablow. Switch Type: Slide. Terminal: Screw. Price: $63.05.
