Product Overview

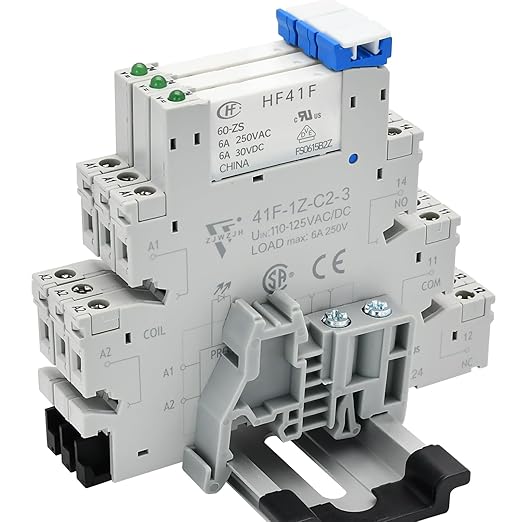

The ZJWZJH Electromechanical Relay Miniature Power Relay 110V/ 120V AC/DC HF41F/60-ZS 1NO 1NC 6A SPDT with LED Indicator is a Electromechanical Relays product by ZJWZJH. It features 【certifications】 power relay through ul and vde certification, socket through.
Key Features

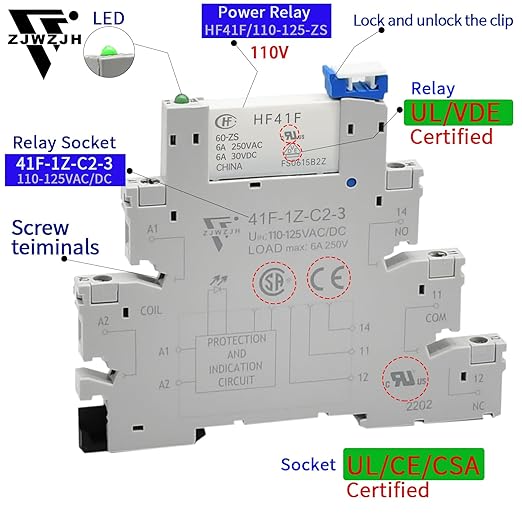

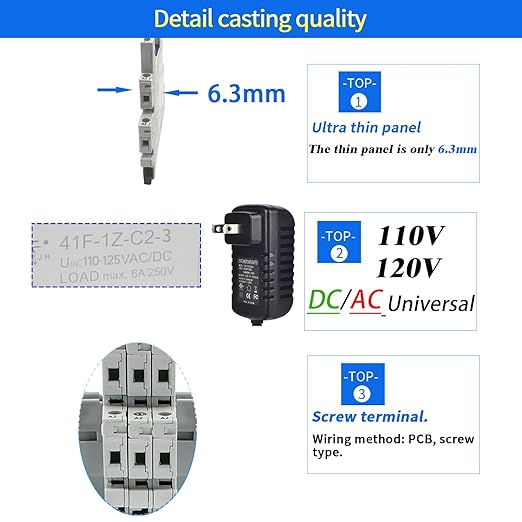

- 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.

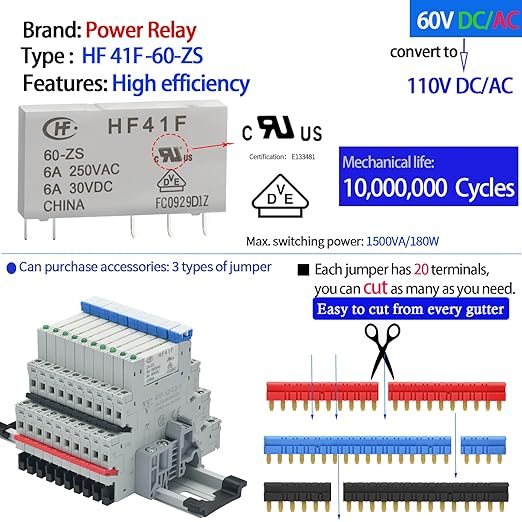

- 【Electromechanical Relays】Relay Coil Voltage: 110V-120V AC/DC. Supports AC and DC power supplies. Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin;; Contact Rating: 6A 250VAC,Recommended minimal load:100mA / 12V. Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.
- 【Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (110~125)V AC/DC; Apply to relay the rated voltage: (110~125)V AC/DC; Input voltage polarity: NO.Recommended minimal load:100mA / 12V,On Delay Time:7ms; Release Time: 15ms

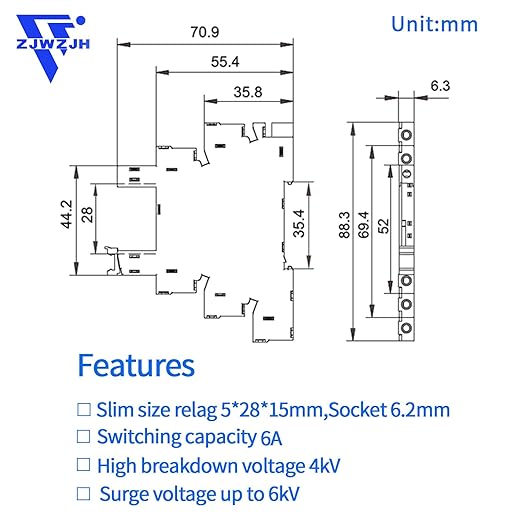

- 【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).

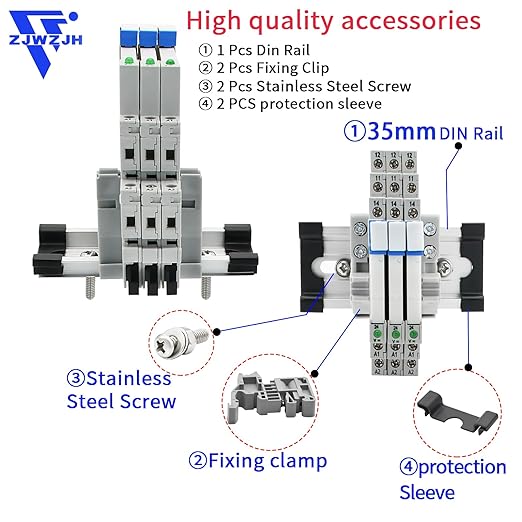

- 【Package】Package Content : 3× Power Relay , 3× Socket Base, 1x 35mm DIN Rail Slotted Aluminum , 2×Screw. Operating temp:-40℃...+70℃ Storage Temp:-40℃...+85℃.
Why Choose the ZJWZJH Electromechanical Relay Miniature Power Relay 110V/ 120V AC/DC HF41F/60-ZS 1NO 1NC 6A SPDT with LED Indicator
The ZJWZJH Electromechanical Relay Miniature Power Relay 110V/ 120V AC/DC HF41F/60-ZS 1NO 1NC 6A SPDT with LED Indicator offers 【certifications】 power relay through ul and vde certification, and 【electromechanical relays】relay coil voltage: 110v-120v ac/dc. supports ac. These features make the ZJWZJH Electromechanical Relay Miniature Power Relay 110V/ 120V AC/DC HF41F/60-ZS 1NO 1NC 6A SPDT with LED Indicator a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH Electromechanical Relay Miniature Power Relay 110V/ 120V AC/DC HF41F/60-ZS 1NO 1NC 6A SPDT with LED Indicator is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH Electromechanical Relay Miniature Power Relay 110V/ 120V AC/DC HF41F/60-ZS 1NO 1NC 6A SPDT with LED Indicator is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Tin Oxide. Contact Type: Normally Open. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $45.44.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver Tin Oxide |
| Contact Type | Normally Open |
| Current Rating | 6 Amps |
| Mounting Type | DIN Rail Mount |
