Product Overview
The OREI 4K HDMI Audio Embedder is a Signal Converters product. It features digital/analog audio to hdmi embedder - replace hdmi audio with.
Key Features

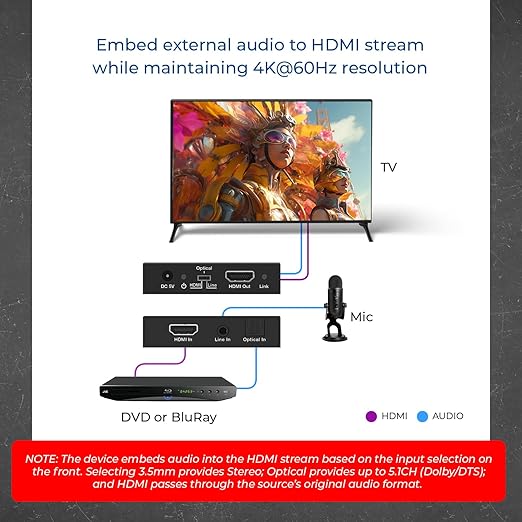

- Digital/Analog Audio to HDMI Embedder - Replace HDMI audio with external Optical (TOSLINK/SPDIF) or Analog (3.5mm) input using a simple switch—choose Optical, Analog, or original HDMI pass-through without moving cables; note that audio is replaced (not mixed), and the correct input channel must be selected for proper transmission.
- 4K @ 60hz High Resolution - Delivers up to 18Gbps 4K@60Hz 4:4:4 video quality and also supports 1080p and 720p. Compatible with DVI-to-HDMI cables to merge DVI video with external audio into an HDMI output. Note: Only HDMI or DVI video inputs are supported—DP, VGA, and similar ports do not work with passive conversion cables.

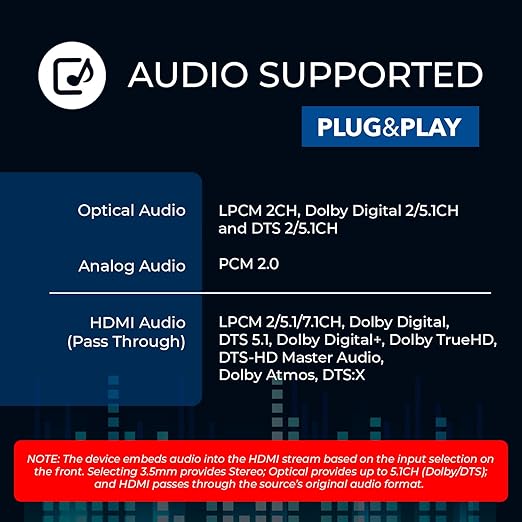

- Full Audio Support - Supports pass-through of digital/analog audio including PCM, LPCM, Dolby, and DTS through HDMI. Optical input supports Dolby, DTS, and PCM, while the 3.5mm input supports 2-channel stereo PCM. Note: The device does not convert audio formats—audio output matches the original input (e.g., 3.5mm stereo in = stereo out via HDMI). DIP switch options: Line = 3.5mm input, Optical = optical input, Pass = original HDMI audio passthrough.
- Durable Metal Enclosure - Heavy-duty metal housing protects internal components and provides excellent heat dissipation for stable, long-term use. Compact design enables easy plug-and-play installation. Supports HDMI 2.0, 10-bit HDR, Dolby Vision, and is fully HDCP 2.2/1.4 compliant.

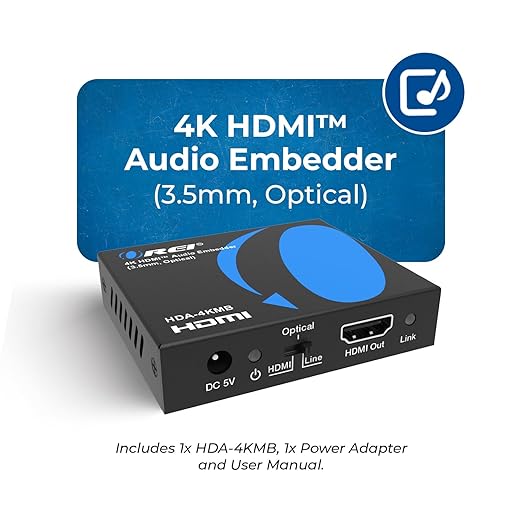

- Package Includes: HDA-4KMB Audio Extractor, Power Adapter (100-240V 50/60Hz auto-switching), User Manual, Lifetime OREI Tech Support, and 12-Month Manufacturer’s Warranty.
Why Choose the OREI 4K HDMI Audio Embedder
The OREI 4K HDMI Audio Embedder offers digital/analog audio to hdmi embedder - replace hdmi and 4k @ 60hz high resolution - delivers up. These features make the OREI 4K HDMI Audio Embedder a strong option in the Signal Converters category.
Best For
The OREI 4K HDMI Audio Embedder is best suited for everyday signal converters needs.
Quick Summary
The OREI 4K HDMI Audio Embedder is a Signal Converters product by OREI. Brand: OREI. Maximum Supply Voltage: 240 Volts. Number of Pins: 49. Interface Type: Analog, HDMI, Optical. Number of Channels: 5. Price: $82.48.
Product Specifications
| Specification | Details |
|---|---|
| Brand | OREI |
| Maximum Supply Voltage | 240 Volts |
| Number of Pins | 49 |
| Interface Type | Analog, HDMI, Optical |
| Number of Channels | 5 |
