Product Overview

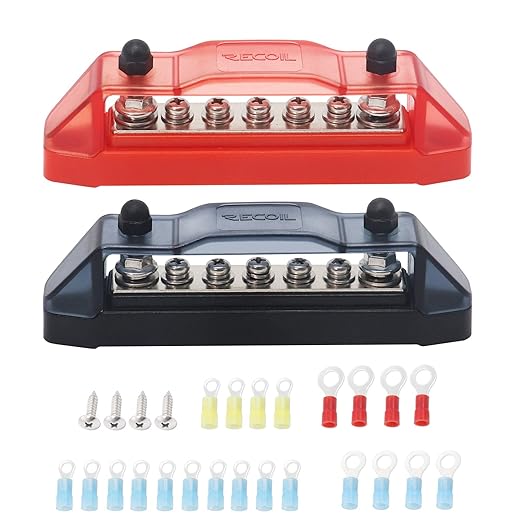

The Recoil BBS25P Bus Bar 2 x M5 Studs and 5 Screw Terminals Power Distribution Block with Ring Terminals Pair Red & Black is a Connecting Blocks product. It features two connections with m5 stainless steel studs and 5 x.
Key Features
- Two connections with M5 stainless steel studs and 5 x #8 stainless steel screws. Comes with 1/4”, #8 insulated ring terminals and stainless steel screws

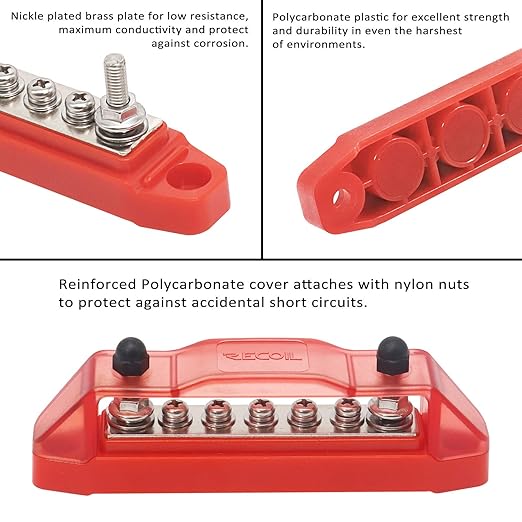

- Reinforced Polycarbonate cover attaches with nylon nuts to protect against accidental short circuits
- Max voltage:300V AC/ 48V DC.Max continuous amperage: 80A AC/100A DC.Max intermittent: 20A per connection
- Nickle plated brass plate for low resistance, maximum conductivity and protect against corrosion. Made from robust Polycarbonate plastic for excellent strength and durability in even the harshest of environments

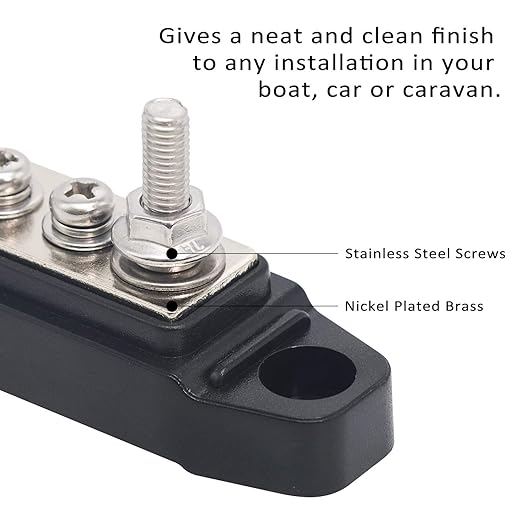

- Gives a neat and clean finish to any installation in your boat, car or caravan
Why Choose the Recoil BBS25P Bus Bar 2 x M5 Studs and 5 Screw Terminals Power Distribution Block with Ring Terminals Pair Red & Black
The Recoil BBS25P Bus Bar 2 x M5 Studs and 5 Screw Terminals Power Distribution Block with Ring Terminals Pair Red & Black offers two connections with m5 stainless steel studs and and reinforced polycarbonate cover attaches with nylon nuts to. These features make the Recoil BBS25P Bus Bar 2 x M5 Studs and 5 Screw Terminals Power Distribution Block with Ring Terminals Pair Red & Black a strong option in the Connecting Blocks category.
Best For
The Recoil BBS25P Bus Bar 2 x M5 Studs and 5 Screw Terminals Power Distribution Block with Ring Terminals Pair Red & Black is best suited for everyday connecting blocks needs.
Quick Summary
The Recoil BBS25P Bus Bar 2 x M5 Studs and 5 Screw Terminals Power Distribution Block with Ring Terminals Pair Red & Black is a Connecting Blocks product by Recoil. Current Rating: 80 Amps. Connector Type: Screw. Number Of Contacts: 4. Mounting Type: Panel Mount. Material: Polycarbonate (PC). Price: $28.03.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 80 Amps |
| Connector Type | Screw |
| Number Of Contacts | 4 |
| Mounting Type | Panel Mount |
| Material | Polycarbonate (PC) |
| Color | Red & Black |
| Brand | RECOIL |
| Voltage | 300 Volts |
| Number Of Poles | 2 |

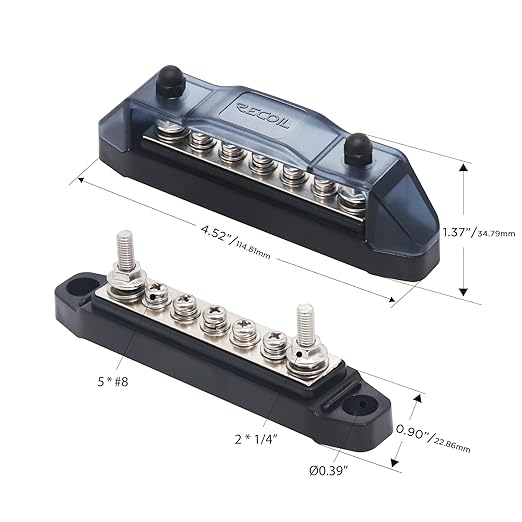

| Product Dimensions | 4.52"W x 1.37"H |
