Product Overview
The Recoil S1P-516 Busbar Single 5/16” Studs Power Distribution Block Bus Bar with Ring Terminals Pair is a Connecting Blocks product. It features single connections with 5/16" stainless steel studs. comes with 8awg.
Key Features

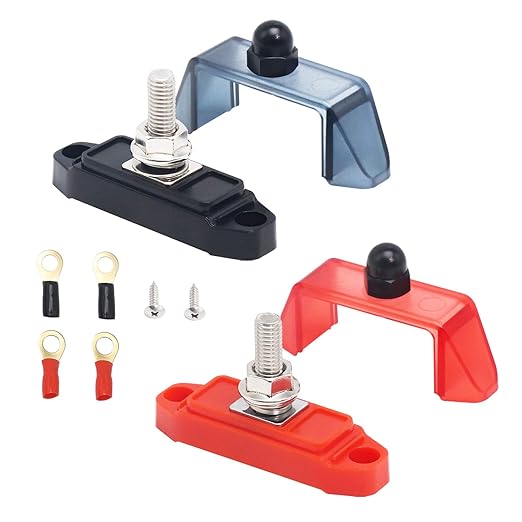

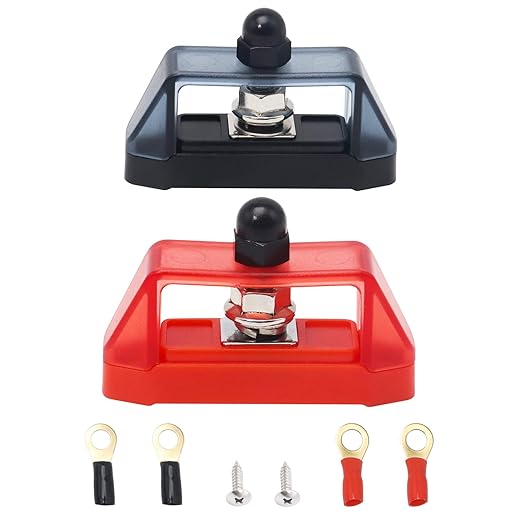

- Single connections with 5/16" stainless steel studs. Comes with 8AWG 5/16” ring terminals and stainless steel screws
- Reinforced Polycarbonate cover attaches with nylon nuts to protect against accidental short circuits

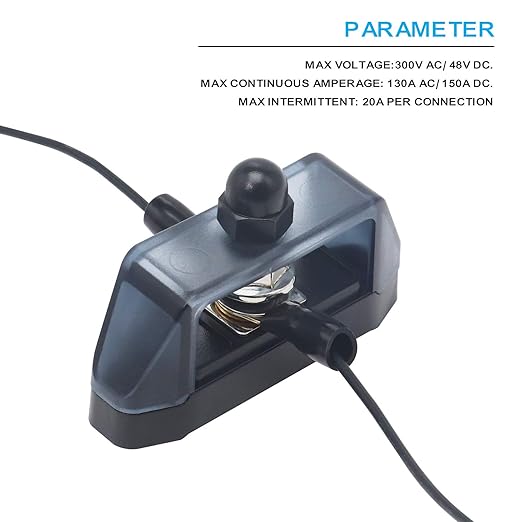

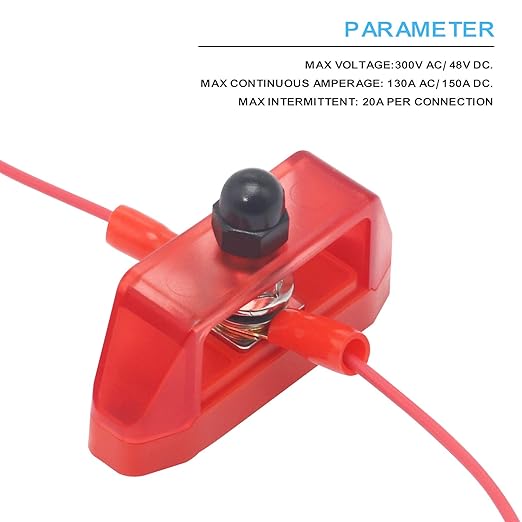

- Max voltage:300V AC/ 48V DC. Max continuous amperage: 130A AC/150A DC.

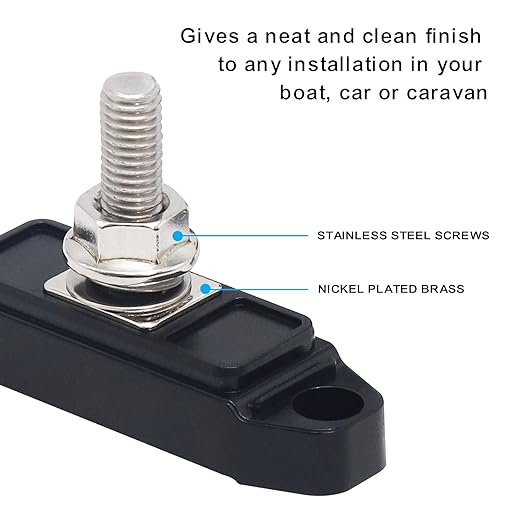

- Nickle plated brass plate for low resistance, maximum conductivity and protect against corrosion. Made from robust Polycarbonate plastic for excellent strength and durability in even the harshest of environments
- Gives a neat and clean finish to any installation in your boat, car or caravan
Why Choose the Recoil S1P-516 Busbar Single 5/16” Studs Power Distribution Block Bus Bar with Ring Terminals Pair
The Recoil S1P-516 Busbar Single 5/16” Studs Power Distribution Block Bus Bar with Ring Terminals Pair offers single connections with 5/16" stainless steel studs. comes and reinforced polycarbonate cover attaches with nylon nuts to. These features make the Recoil S1P-516 Busbar Single 5/16” Studs Power Distribution Block Bus Bar with Ring Terminals Pair a strong option in the Connecting Blocks category.
Best For
The Recoil S1P-516 Busbar Single 5/16” Studs Power Distribution Block Bus Bar with Ring Terminals Pair is best suited for everyday connecting blocks needs.
Quick Summary
The Recoil S1P-516 Busbar Single 5/16” Studs Power Distribution Block Bus Bar with Ring Terminals Pair is a Connecting Blocks product by Recoil. Current Rating: 150 Amps. Gauge: 8.0. Connector Type: Screw. Number Of Contacts: 2. Mounting Type: Panel Mount. Price: $21.43.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 150 Amps |
| Gauge | 8.0 |
| Connector Type | Screw |
| Number Of Contacts | 2 |
| Mounting Type | Panel Mount |
| Material | Brass, Plastic, Polycarbonate (PC), Stainless Steel |
| Brand | RECOIL |
| Voltage | 300 Volts |
| Number Of Poles | 1 |

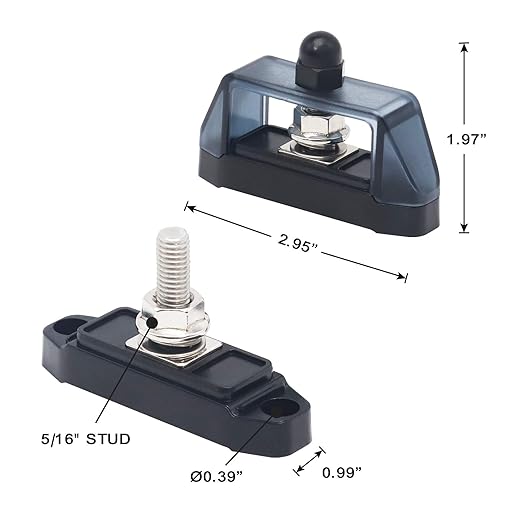

| Product Dimensions | 2.95"W x 1.97"H |
