Name: UL Listed 10Pcs Miniature Din Rail Relay 24V Black 24VDC ans 24VAC, 6Amp SPDT
Brand: ZJWZJH
SKU: SPH-B0D2TF9RYQ
Price: 82.48 USD
Availability: InStock

UL Listed 10Pcs Miniature Din Rail Relay 24V Black 24VDC ans 24VAC, 6Amp SPDT

$82.48

UL Listed 10Pcs Miniature Din Rail Relay 24V Black 24VDC ans 24VAC, 6Amp SPDT

$82.48

Shipping calculated at checkout.

Product Overview

The ZJWZJH UL Listed 10Pcs Miniature Din Rail Relay 24V Black 24VDC ans 24VAC is a Electromechanical Relays product by ZJWZJH. It features 【certifications】 power relay through ul and vde certification, socket through.

Key Features

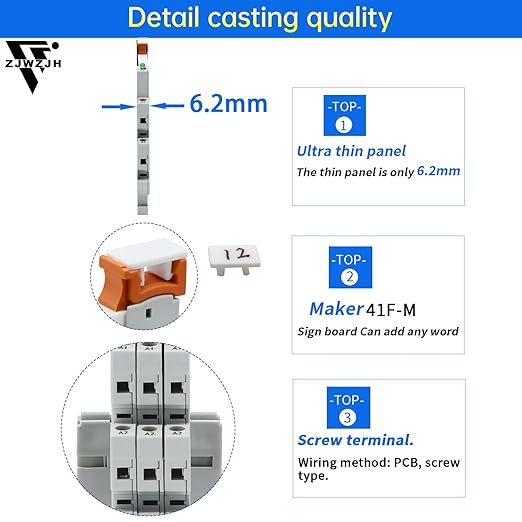

【Certifications】 Power Relay through UL and VDE certification, Socket through CE certification.Product Name: Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
【24 volt relay AC/DC】Coil Voltage:DC/AC 24V; Contact : SPDT 1 Form C(1NO 1NC); Number of Terminals : 5 Pin; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

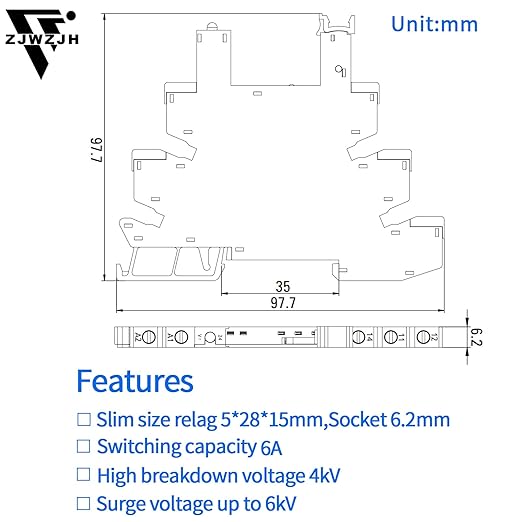

【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C5, Size : 97.7x97.7x 6.2mm / 3.85"x3.85"x 0.24"(H*L*W). Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").

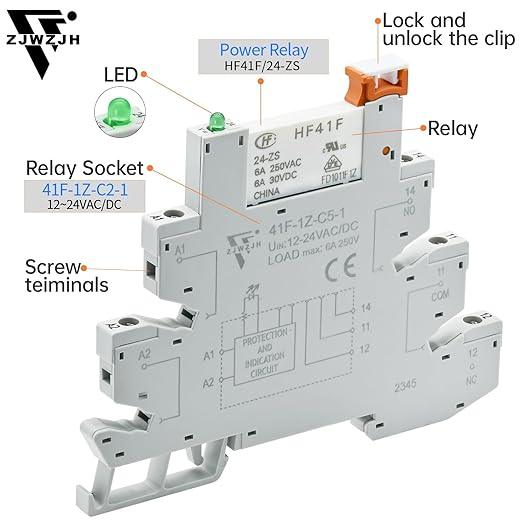

【White Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

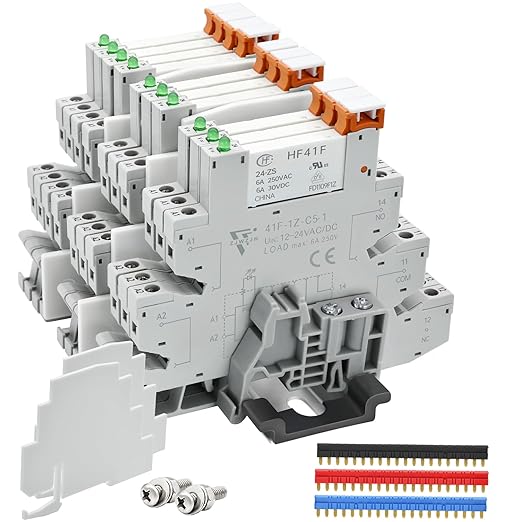

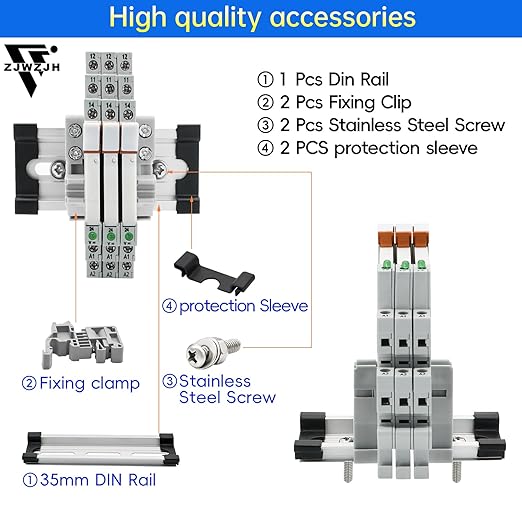

【Package】Package Content : 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail;3×Jumper;4×Fixing Clip;2×Separator; 4×Screw.Ambient temperature: -40℃ ~ 70℃.

Why Choose the ZJWZJH UL Listed 10Pcs Miniature Din Rail Relay 24V Black 24VDC ans 24VAC

The ZJWZJH UL Listed 10Pcs Miniature Din Rail Relay 24V Black 24VDC ans 24VAC offers 【certifications】 power relay through ul and vde certification, and 【24 volt relay ac/dc】coil voltage:dc/ac 24v; contact :. These features make the ZJWZJH UL Listed 10Pcs Miniature Din Rail Relay 24V Black 24VDC ans 24VAC a strong option in the Electromechanical Relays category.

Best For

The ZJWZJH UL Listed 10Pcs Miniature Din Rail Relay 24V Black 24VDC ans 24VAC is best suited for everyday electromechanical relays needs.

Quick Summary

The ZJWZJH UL Listed 10Pcs Miniature Din Rail Relay 24V Black 24VDC ans 24VAC is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Tin Oxide. Contact Type: Spdt. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $82.48.

Product Specifications

Specification	Details
Connector Type	Screw
Contact Material	Silver Tin Oxide
Contact Type	Spdt
Current Rating	6 Amps
Mounting Type	DIN Rail Mount
