Product Overview

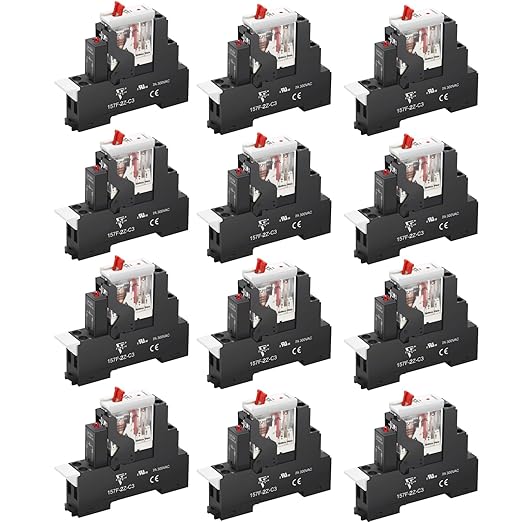

The ZJWZJH UL Listed 12Pcs 8Amp Mini Relay Switch DPDT with Test Button 110V-120V AC 2NO 2NC 5Pin Socket Base with Indicator Light is a Industrial Electrical product by ZJWZJH. It features our 110v relay power relay through ul certification and ce.
Key Features

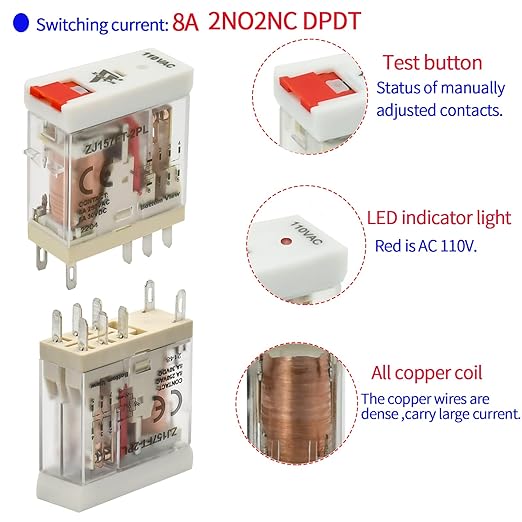

- Our 110V Relay Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

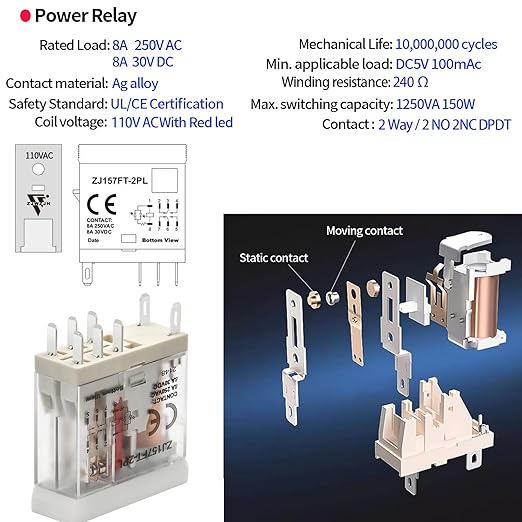

- Relay: 110V-120V AC; Contact :DPDT, 2Normally Closed + 2Normally Open 2 Poles.; rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.

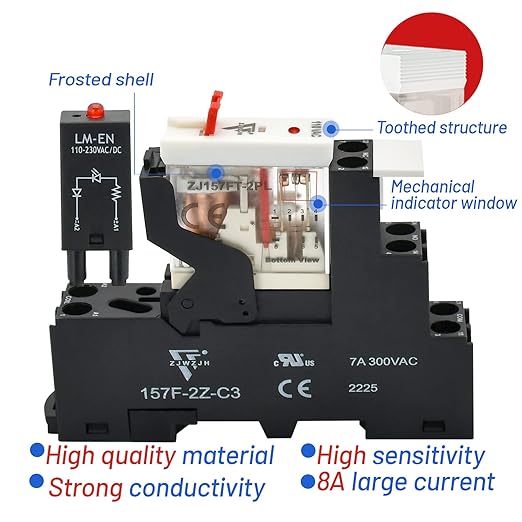

- The relay is equipped with a red LED light and a visual window to check the contact status. The shell is transparent frosted and non slip.
- Package: 12 Pcs Power Relay ,12 Pcs Socket, 4 x Fixing clamp , 2 x DIN Rail(20cm/7.87"), 4 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
- The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Why Choose the ZJWZJH UL Listed 12Pcs 8Amp Mini Relay Switch DPDT with Test Button 110V-120V AC 2NO 2NC 5Pin Socket Base with Indicator Light
The ZJWZJH UL Listed 12Pcs 8Amp Mini Relay Switch DPDT with Test Button 110V-120V AC 2NO 2NC 5Pin Socket Base with Indicator Light offers our 110v relay power relay through ul certification and relay: 110v-120v ac; contact :dpdt, 2normally closed +. These features make the ZJWZJH UL Listed 12Pcs 8Amp Mini Relay Switch DPDT with Test Button 110V-120V AC 2NO 2NC 5Pin Socket Base with Indicator Light a strong option in the Industrial Electrical category.
Best For
The ZJWZJH UL Listed 12Pcs 8Amp Mini Relay Switch DPDT with Test Button 110V-120V AC 2NO 2NC 5Pin Socket Base with Indicator Light is best suited for everyday industrial electrical needs.
Quick Summary
The ZJWZJH UL Listed 12Pcs 8Amp Mini Relay Switch DPDT with Test Button 110V-120V AC 2NO 2NC 5Pin Socket Base with Indicator Light is a Industrial Electrical product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Alloy. Contact Type: 2no 2nc. Mounting Type: DIN Rail Mount. Brand: ZJWZJH. Price: $148.48.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver Alloy |
| Contact Type | 2no 2nc |
| Mounting Type | DIN Rail Mount |
| Brand | ZJWZJH |
