Name: UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp
Brand: ZJWZJH
SKU: SPH-B0F6YF6QXZ
Price: 164.98 USD
Availability: InStock

UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp

$164.98

UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp

$164.98

Shipping calculated at checkout.

Product Overview

The ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator is a Relays product by ZJWZJH. It features 【ul listed 】electromagnetic relay through ul and vde certification, socket.

Key Features

【UL Listed 】Electromagnetic relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name: Subminiature Power Relay. The thickness is only 0.24 "/6.2mm.
Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin; Coil Voltage:AC/DC 24V; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

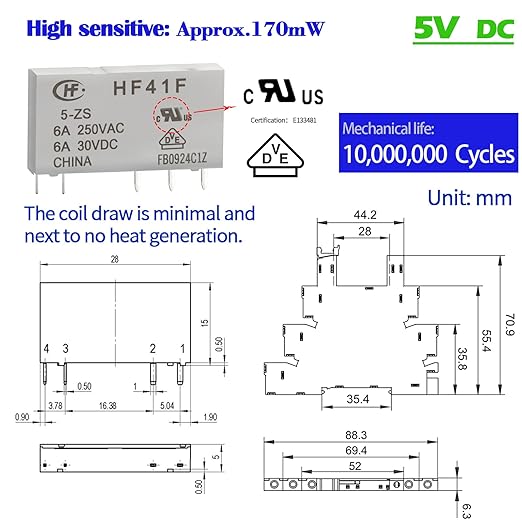

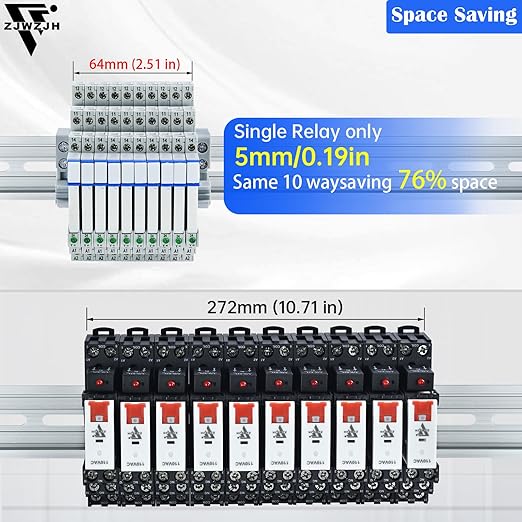

5V Relay Model:HF41F/5-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W)
Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :140mm (5.51").

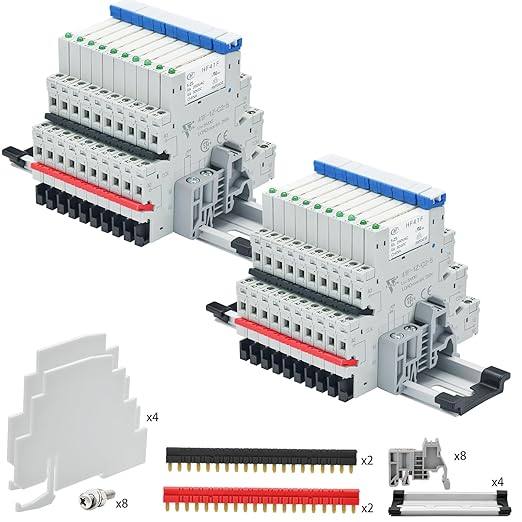

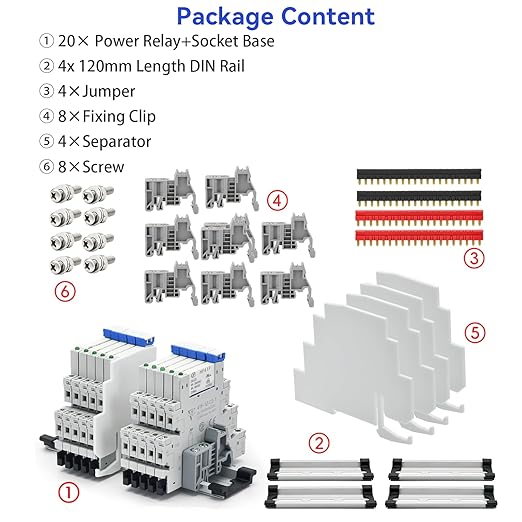

【Package】Package Content : 20× Power Relay; 20× Relay Socket Base; 4x 140mm Length DIN Rail; 6×Jumper;8×Fixing Clip;4×Separator; 8×Screw.Ambient temperature: -40℃ ~ 70℃.

Why Choose the ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator

The ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator offers 【ul listed 】electromagnetic relay through ul and vde and contact : 1 form c(1no 1nc); number of. These features make the ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator a strong option in the Relays category.

Best For

The ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator is best suited for everyday relays needs.

Quick Summary

The ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator is a Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Agsno₂. Contact Type: Normally Open. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $164.98.

Product Specifications

Specification	Details
Connector Type	Screw
Contact Material	Agsno₂
Contact Type	Normally Open
Current Rating	6 Amps
Mounting Type	DIN Rail Mount
