Product Overview

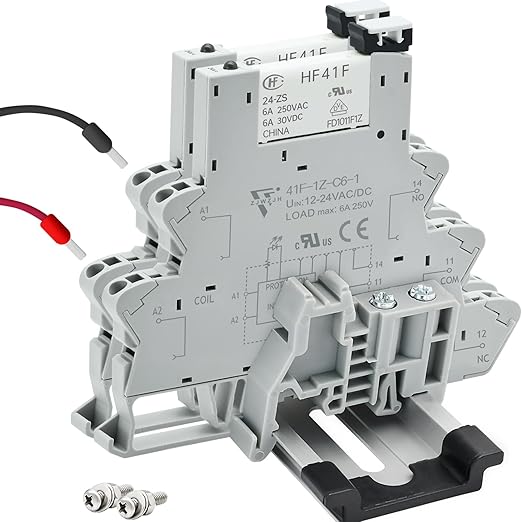

The ZJWZJH UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw is a Electromechanical Relays product by ZJWZJH. It features 【certifications】 electromagnetic power coil relay through ul and vde certification,.
Key Features
- 【Certifications】 Electromagnetic Power Coil Relay through UL and VDE certification, Socket through UL / CSA and CE certification. Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
- 【Electromechanical Relays】Coil Voltage: 24V DC/24V AC, Both DC and AC are universal; Contact : 1 Form C(1NO 1NC), SPDT; Number of Terminals : 5 Pins; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

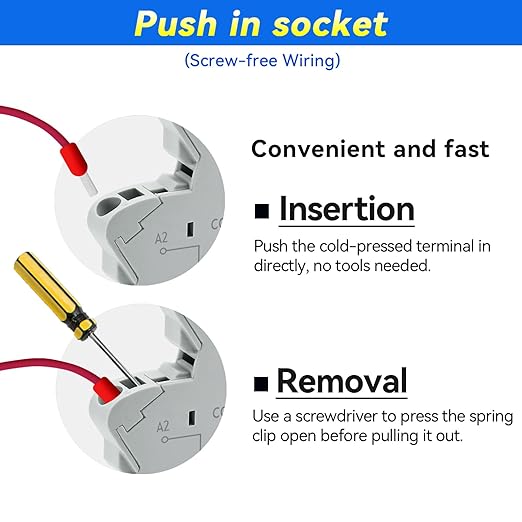

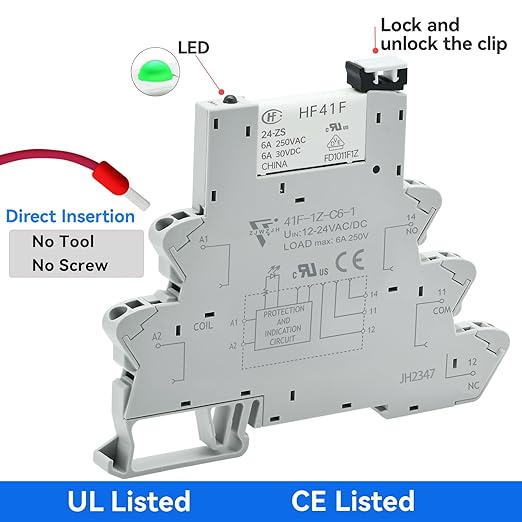

- 【 Push-In Socket】★[ Installation]: Insert the cold-pressed terminal wire directly into the round hole (Screw-free wiring). ★[ Removal ]: First, poke the square hole with a screwdriver, and then the wire can be easily removed.

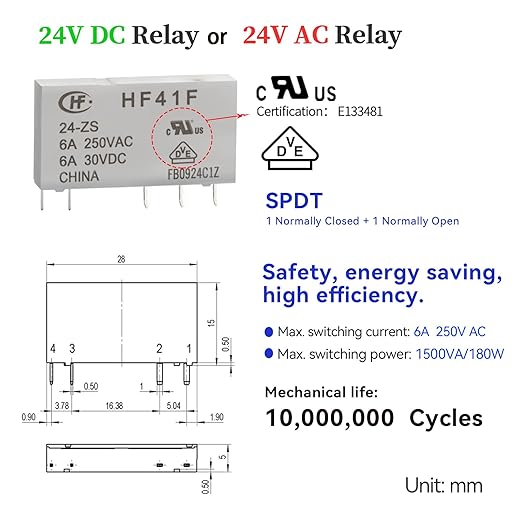

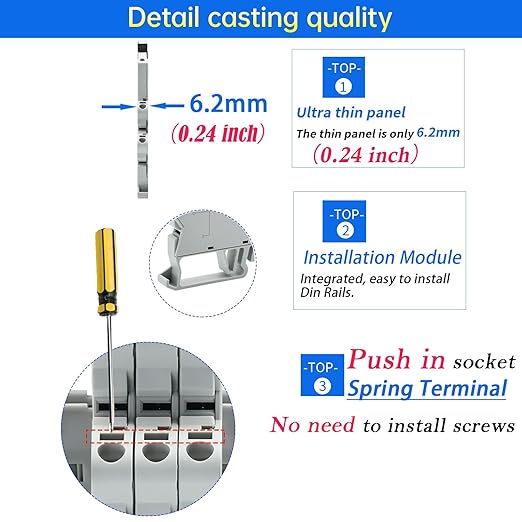

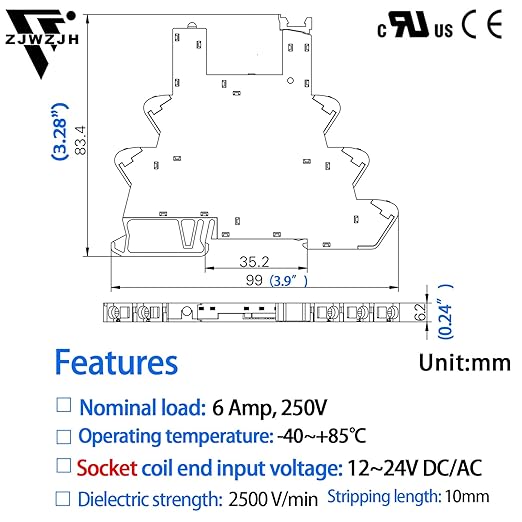

- 【Dimension】Relay Slim size (width 5mm), Outline size:28*5*15mm; Socket Model: 41F-1Z-C6, Size : 99*83.4*6.2mm / 3.9"*3.28"* 0.24"(H*L*W). Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").

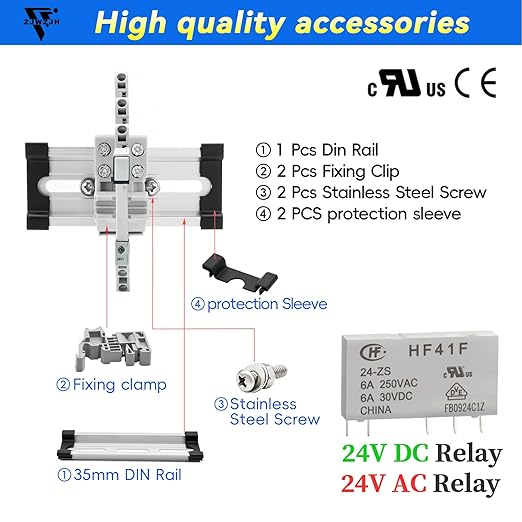

- 【Package】Package Content : 2× Power Relay; 2× Relay Socket Base; 1× DIN Rail;2×Fixing Clip;2×Screw.Ambient temperature: -40℃ ~ 70℃.

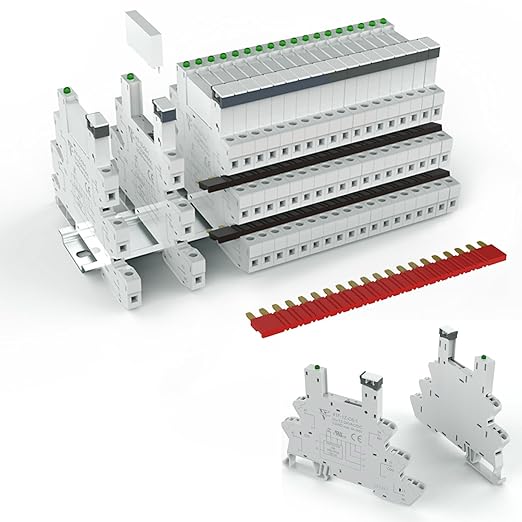

- PLC Relay Systemwith Push-In Technology. Socket: Spring Loaded, Cage Clamp, Push in Socket, DIN rail mounting, with finger protection device. Apply to relay the rated voltage: (12-24)V AC/DC.
Why Choose the ZJWZJH UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
The ZJWZJH UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw offers 【certifications】 electromagnetic power coil relay through ul and and 【electromechanical relays】coil voltage: 24v dc/24v ac, both dc. These features make the ZJWZJH UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw is a Electromechanical Relays product by ZJWZJH. Connector Type: Push in Socket. Contact Material: Agsno2. Contact Type: 1no 1nc. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $26.38.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Push in Socket |
| Contact Material | Agsno2 |
| Contact Type | 1no 1nc |
| Current Rating | 6 Amps |
| Mounting Type | DIN Rail Mount |
