Product Overview

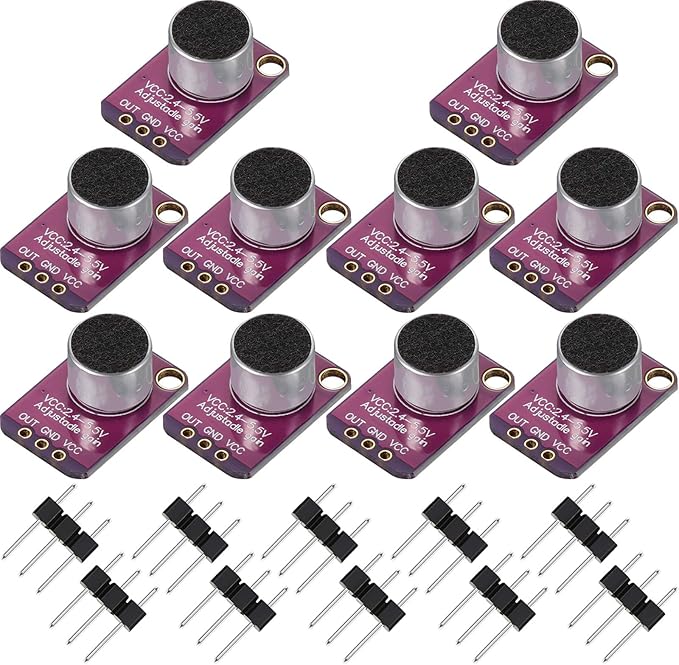

The Weewooday 10 Pieces Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Blue Breakout Board Compatible with Arduino is a Amplifiers product. It features application: the max4466 microphone breakout is suitable for voice converters,.
Key Features
- Application: the MAX4466 microphone breakout is suitable for voice converters, audio recording and sampling, and audio response projects using FFT; On the back, there is a small trimmer pot to adjust the gain; You can set the gain from 25x to 125x

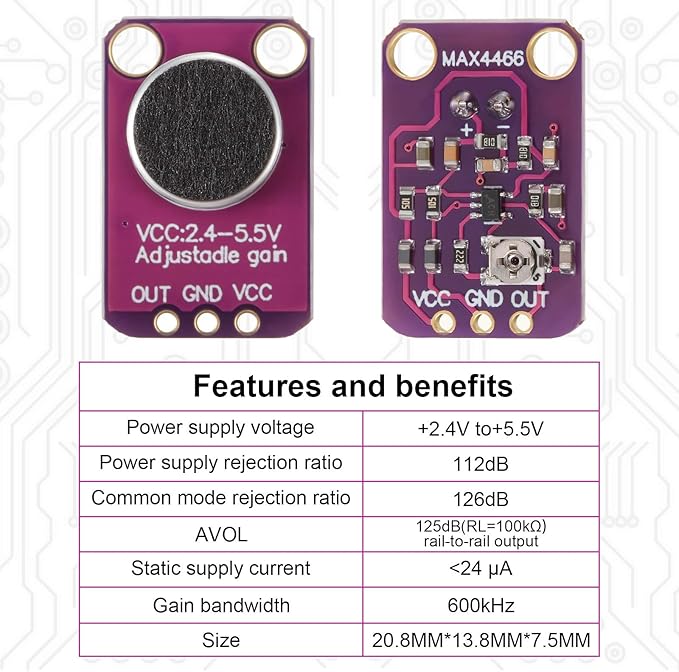

- Parameters: power supply voltage: +2.4V to +5.5V (can be compatible with STM, Raspberry Pi and other development board motherboards); Power supply rejection ratio: 112dB; Common mode rejection ratio: 126dB; AVOL: 125dB (RL = 100 thousands of ohm meter) rail-to-rail output; Quiescent power supply current: less than 24 microamp; Gain bandwidth: 600kHz
- 20-20KHz electret microphone soldered on: comes with a 20-20KHz electret microphone soldered on the board for audio-reactive projects; It is recommended to use the FFT driver library, which can take audio input and 'translate' it into frequencies

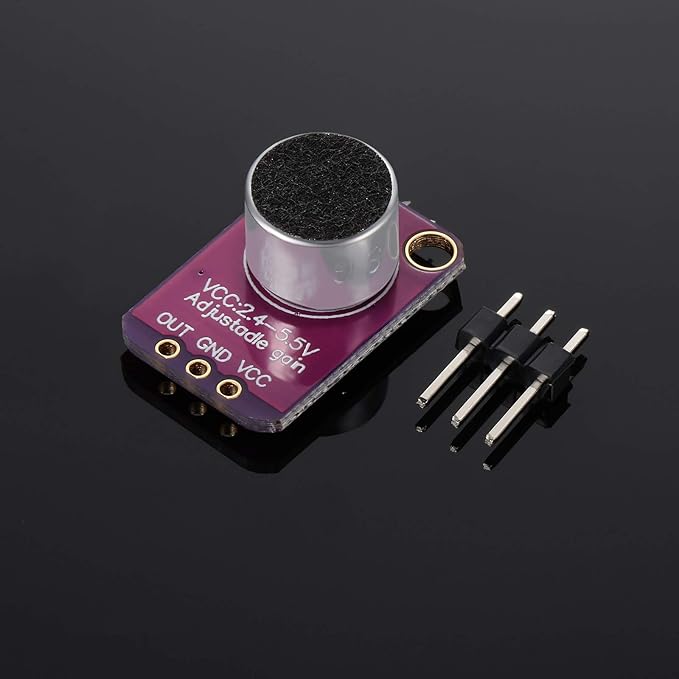

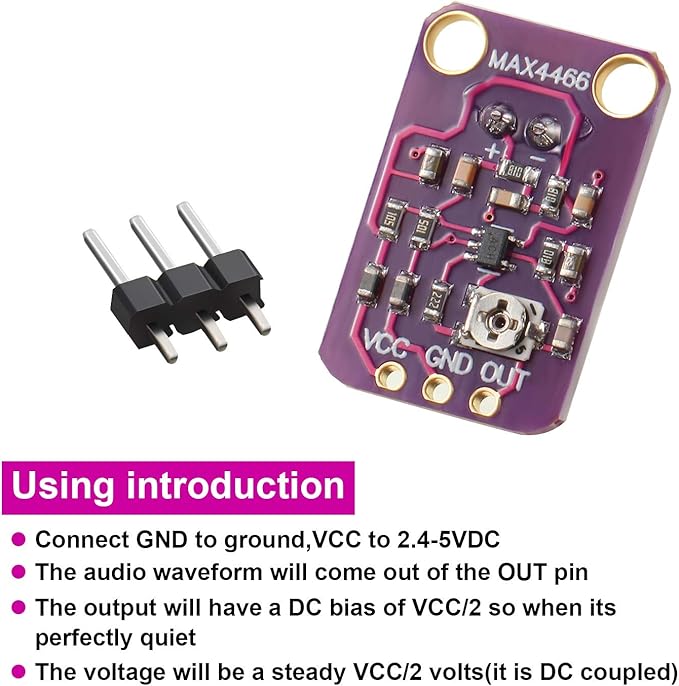

- Easy to use: connect GND to ground, VCC to 2.4-5VDC; For the good performance, use the 'quietest' supply available (this would be the 3.3V supply)
- Power supply noise rejection function: the amplifier has good power supply noise rejection
Why Choose the Weewooday 10 Pieces Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Blue Breakout Board Compatible with Arduino
The Weewooday 10 Pieces Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Blue Breakout Board Compatible with Arduino offers application: the max4466 microphone breakout is suitable for and parameters: power supply voltage: +2.4v to +5.5v (can. These features make the Weewooday 10 Pieces Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Blue Breakout Board Compatible with Arduino a strong option in the Amplifiers category.
Best For
The Weewooday 10 Pieces Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Blue Breakout Board Compatible with Arduino is best suited for: voice converters.
Quick Summary
The Weewooday 10 Pieces Electret Microphone Amplifier Adjustable MAX4466 Module Microphone Preamplifier Blue Breakout Board Compatible with Arduino is a Amplifiers product by Weewooday. Item dimensions L x W x H: 5.71 x 4.72 x 0.63 inches. Voltage: 5.5 Volts. Maximum Supply Voltage: 5.5 Volts. Minimum Supply Voltage: 2.4 Volts (DC). Price: $21.43.
Product Specifications
| Specification | Details |
|---|---|

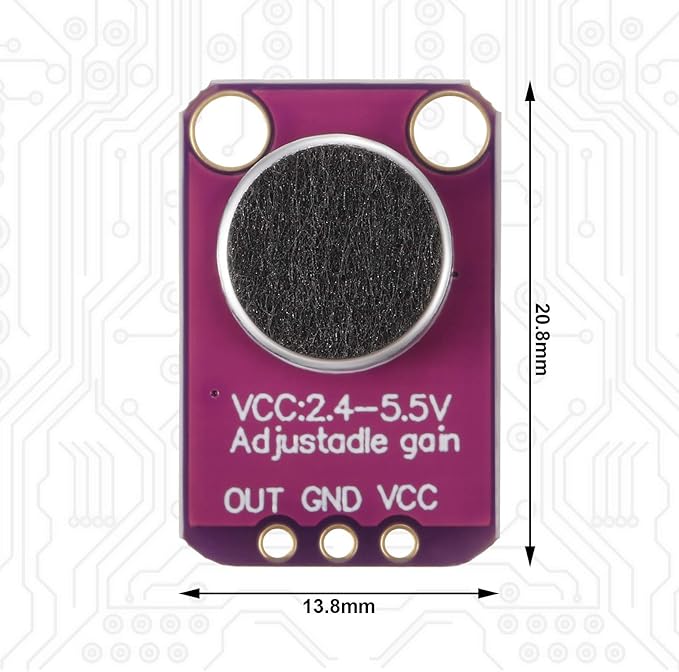

| Item dimensions L x W x H | 5.71 x 4.72 x 0.63 inches |
| Voltage | 5.5 Volts |
| Maximum Supply Voltage | 5.5 Volts |
| Minimum Supply Voltage | 2.4 Volts (DC) |
